Spirit 8
Larger Images

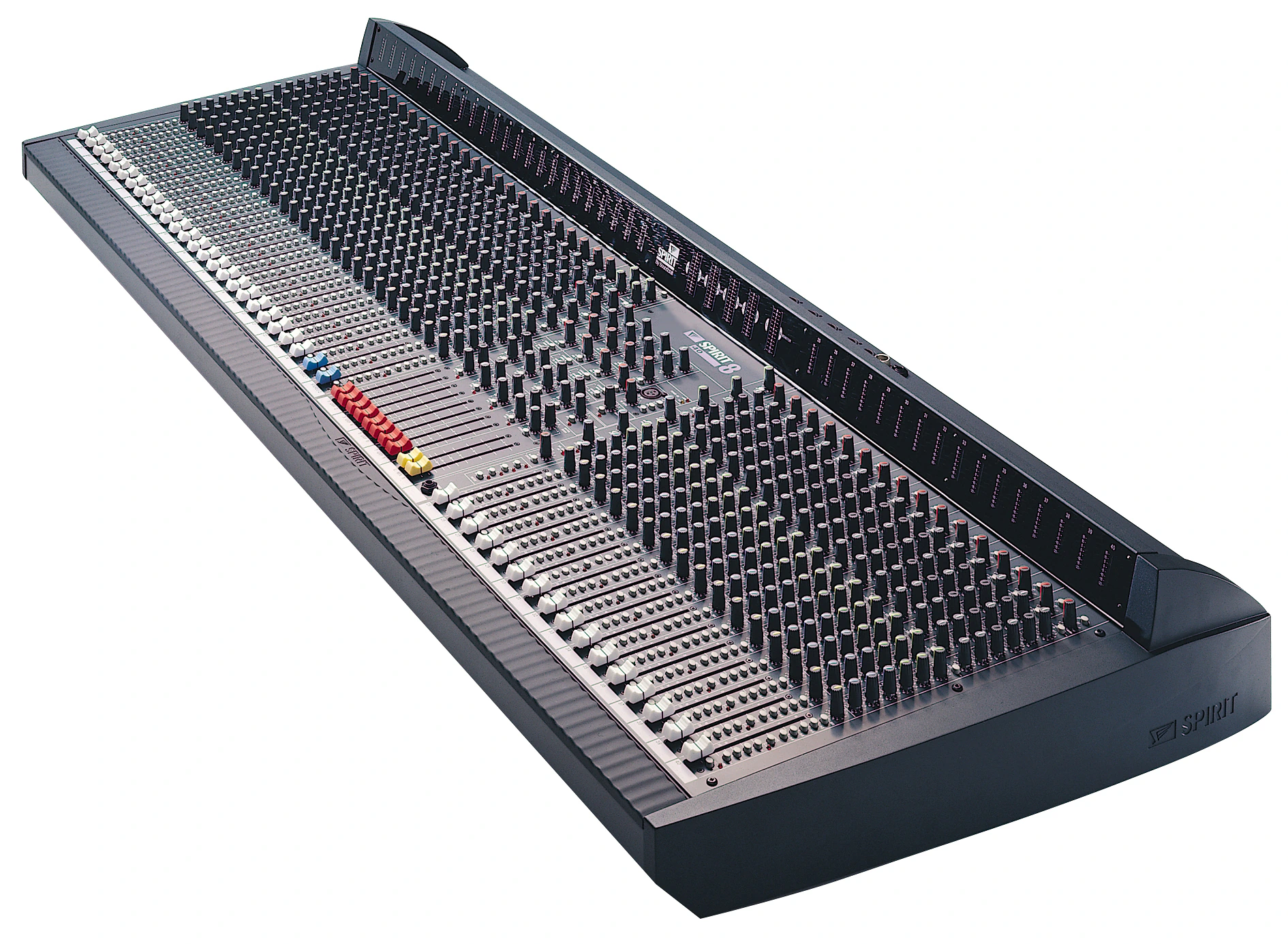

The Spirit 8 is the ultimate Spirit Range live console, a full-featured 8-bus desk that combines a comprehensive range of professional control and routing facilities with cost-effective and compact design. You can choose the Spirit 8 in any of four frame sizes, from 16 to 40 mono channels, all featuring eight subgroups for routing sets of channels together, giving you fewer faders to ride when balancing the overall mix.

Applications:

  • 8-bus live mixing
  • FOH mixing
  • Touring bands
  • Venues and theatres
  • Installations
  • Recording direct to multitrack

Features

  • 16, 24, 32 and 40 channels frame sizes
  • 8 group busses
  • UltraMic+ preamp with up to 66dB gain range
  • +48V phantom power, individually switchable on each channel
  • 4-band EQ with two swept mid bands
  • 4 mute groups
  • Additional outputs on 10 x 2 matrix
  • Two stereo input channels
  • 8 stereo returns
  • Phase reverse on mono inputs
  • 18dB/octave high-pass filter
  • 6 aux sends, configurable to give up to 4 pre or post fade sends
