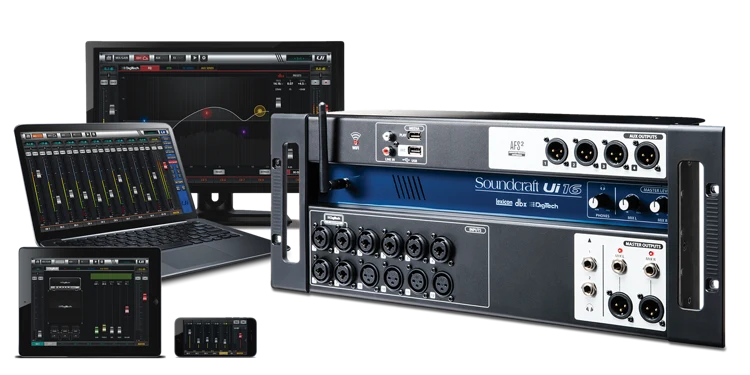

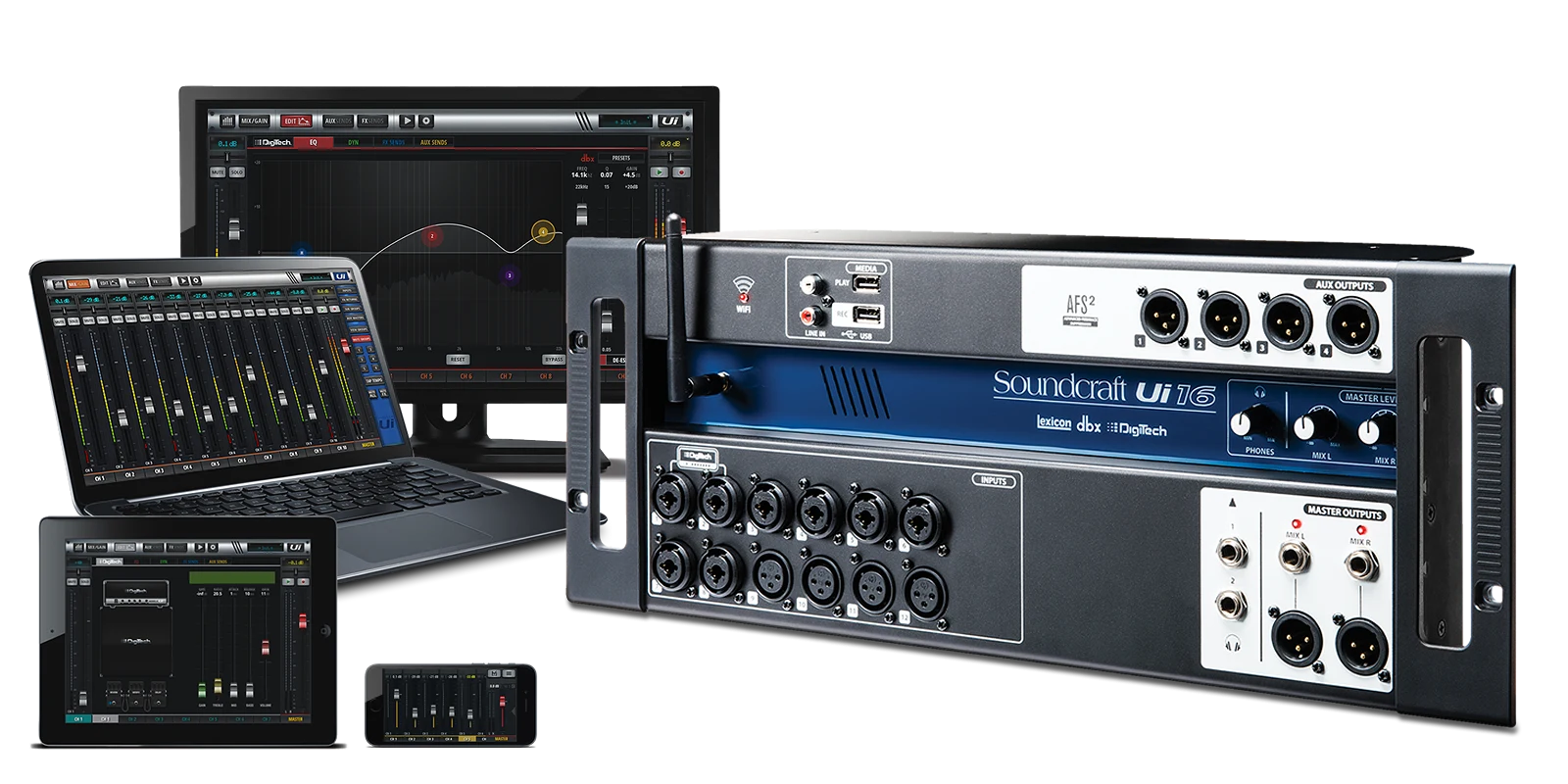

Ui16

16-channel Digital Mixer With Wireless Control

$449.00
Buy It Now

The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.

Software Demo

Choose a screen size to preview the Ui16 web-based mixer application:

Phone
Phone
Tablet
Tablet

Features

  • Tablet/PC/Smartphone Controlled Digital Mixer
  • Integrated Wi-Fi
  • Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
  • Use up to 10 control devices (tablets, phones, PCs) simultaneously
  • Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
  • Fully recallable and remote-controlled mic preamps
  • 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
  • 31-band Graphic EQ, Noise Gate and Compressor on all outputs
  • Real-Time Frequency Analyser (RTA) on inputs and outputs
  • 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
  • Subgroups, Mute Groups, View Groups, and more mixer controls
  • Show/Snapshot recall with channel safes and security lockout
  • 2-channel USB audio playback and recording
  • Password-protected Access limitation system
  • Sync ID (multiple browser windows staying in channel Sync)

Public Beta Firmware Download

Click here for information on public beta Ui12 and Ui16.

This build is required for use with HARMAN Connected PA app.

Videos





















































































Downloads

  Version Language Size Uploaded
Firmware
Ui16 Firmware Update
version 1.0.7548, updated: Jan 24, 2018
1.0.7548     53.3 MB Jan 24, 2018
Ui16 Firmware Update Release Notes     29.3 KB Jan 24, 2018
Ui16 Firmware Update v1.0.7048
updated: Jan 24, 2018
    53.1 MB Jan 24, 2018
Ui16 Firmware Updater Read Me File     4.33 KB Jan 24, 2018
  Version Language Size Uploaded
Owners Manuals
Ui12/16 User Guide v3.0 (English)
en updated: Nov 23, 2020
  en  37.1 MB Nov 23, 2020
Ui12/16 User Guide V3.0 (Chinese Version)
zh updated: Nov 23, 2020
  zh  14.2 MB Nov 23, 2020
Ui12/16 User Guide V2.8 (French Version)
fr updated: Nov 23, 2020
  fr  6.76 MB Nov 23, 2020
Ui12/16 User Guide V2.8 (German Version)
de updated: Nov 23, 2020
  de  6.82 MB Nov 23, 2020
Ui12/16 User Guide V2.8 (Portuguese Version)
updated: Nov 23, 2020
    6.76 MB Nov 23, 2020
Ui12/16 User Guide V2.8 (Russian Version)
updated: Nov 23, 2020
    24.2 MB Nov 23, 2020
Ui12/16 User Guide V2.8 (Spanish Version)
es updated: Nov 23, 2020
  es  6.78 MB Nov 23, 2020
Brochures
Soundcraft Ui Series Brochure
en updated: Nov 23, 2020
  en  18.1 MB Nov 23, 2020

Specifications

Height 110mm (4.3")
Width 177mm (7.0")
Length 483mm (19.0")
Weight 3.61kg (7.9lb)
