A complete standalone console package with either 32 or 48 channels of analogue inputs

Larger Images

With the Soundcraft Vi Series now firmly established as a firm favourite digital desk on both the touring, broadcast and installed sound scenes, Soundcraft have taken this amazing platform to another, more affordable level with the release of the new Vi1 console.

Many users have asked for a smaller, lower-priced desk that still has the acclaimed VistonicsTM user interface, and of course the now-legendary optimal sound quality established with the Vi Series.

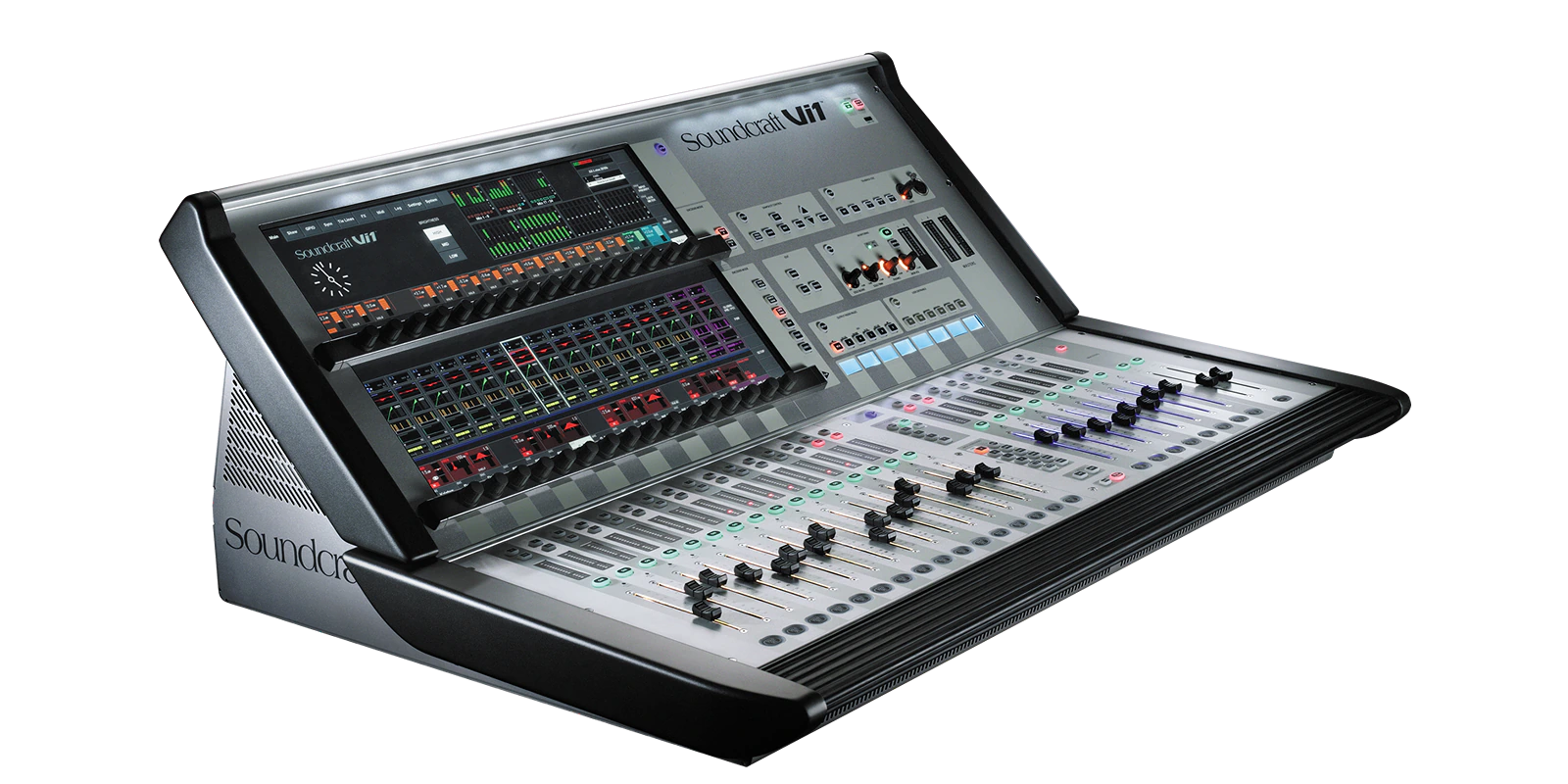

So here it is, the Soundcraft Vi1™.

A complete standalone console package with 32 channels of analogue input to 27 analogue outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46chs, but by adding a stagebox (compatible with the existing Vi racks), simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses.

Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources.

The surface is just over a metre wide, and includes 16 motorised channel faders with fixed and user-definable layers, 8 output/VCA faders and 2 master faders.

What's really cool about the Vi1 though, is the new Widescreen Vistonics interface, which will be instantly familiar to anyone who's driven a Vi6 or Vi4, as well as retaining the same 'walk-up' user-friendliness of the other Vi consoles. This new development displays all parameters for 16 channels side by side, on a single 22" Vistonics touch screen. The upper half of the screen handles the Output section control as well as Cue List or Menu displays. Parameter control is via two rows of 16 rotary encoders. Exactly the same channel functionality as the Vi6 and Vi4 is available here, along with all the same core snapshot, talkback and monitoring facilities.

Naturally, the Vi1 inherits many of the facilities of its larger siblings, including Soundcraft FaderGlow™, 4 stereo Lexicon effects engines, BSS Audio graphic EQs on all output busses, and integral dynamics on all channels. The desk is also compatible with Vi2, 4 and 6 show files.

As you’d expect, the price of the Vi1 is extremely attractive, which is sure to make it a clear winner with engineers and sound companies.

















































































  Version Language Size Uploaded
Offline Editors
[CURRENT] Virtual Vi 4.9.2    12.7 MB Jul 06, 2018
[PREVIOUS] Virtual Vi 4.8.2    11.9 MB Sep 13, 2017
Software Updaters
[CURRENT] Vi 1-6 Software Update 4.9.2    8.39 MB Jul 06, 2018
Release Notes for Vi1-6 V4.9.2     2.91 KB Jul 06, 2018
[PREVIOUS] Vi Series Software Update V4.8.2     7.28 MB Jul 06, 2018
Vi Series     398 KB Jul 06, 2018
Release Notes for Vi1-6 v4.9.0.289 4.9.0    5.98 KB Jul 06, 2018
Update Instructions for Vi1 and Vi2/4/6 Consoles V4.9     497 KB Jul 13, 2018
Update Instructions for Vi 1-6 consoles (French version) Issue 3     964 KB Jul 06, 2018
Release Notes for Vi1-6 V4.8.2.234 Issue 3     6.89 KB Sep 13, 2017
Vi Series Software V4.8 Brochure     486 KB Sep 13, 2017
  Version Language Size Uploaded
Soundcraft Vi1 Brochure   en  6.51 MB Nov 10, 2016
VM(2) AKG Mic Monitoring Flyer   en  508 KB Nov 10, 2016
Install Guides
16x16 AES card with Vi1 - Installation Guide   en  619 KB Nov 10, 2016
Owners Manuals
Compact Stagebox User Guide   en  1.09 MB Nov 10, 2016
Soundcraft Vi1 Mode d'Emploie (Francais)   fr  26.8 MB Nov 10, 2016
Soundcraft Vi1 User Guide   en  12.2 MB Nov 10, 2016
Soundcraft Realtime Rack User Guide   en  9.86 MB Jul 15, 2020
Quickstart Guides
Vi V4.7 Software Quickstart Guide   en  1.21 MB Nov 10, 2016
Vi V4.5 Software Quickstart Guide   en  3.75 MB Jul 15, 2020
Vi V4.8 Software Quickstart Guide   en  2.47 MB Nov 10, 2016
AKG Hub4000Q Setup FAQ for VM2   en  2.1 MB Nov 10, 2016
Plugins and ProTools for Vi Series   en  2.13 MB Nov 10, 2016
Soundcraft Vi1 dimension drawings   en  3.05 MB Nov 10, 2016
Vi1 Desk Dimension (DXF)   en  16.2 MB Nov 10, 2016
Vi1 Flightcase Overall Dimensions   en  254 KB Nov 10, 2016
Vi1 Layout Front   en  1.91 MB Nov 10, 2016
Vi1 Layout Rear   en  8.67 MB Nov 10, 2016


Frequency Response - Local Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
THD+Noise 22Hz-22kHz
THD & Noise - Local Mic In (min gain) to Local Line Out <0.003% @ 1kHz
THD & Noise - Local Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Mic Input E.I.N <-125dBu (150Ω source), 22Hz-22kHz bandwidth, unweighted
Residual Noise -95dBu - Local line output; no inputs routed, Mix fader @0dB
CMRR 80dB @ 1kHz Local Mic Input
Sampling Frequency 48kHz
Latency - Local Mic Input to Local Line output < 2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy < +/- 50ppm
Internal Clock Jitter < +/- 5ns
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +23dBu max
Input & Output Levels - Line Outputs +22dBu max
Input & Output Levels - Nominal Operating Level 0dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 2k7Ω
Input & Output Impedances - All other analogue Inputs >10kΩ
Input & Output Impedances - Line Outputs <75Ω
Input & Output Impedances - AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption Control Surface - 100W
Internal Mass Storage 4GB Compact Flash Card
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Height 394mm (15.5")
Width 1034mm (40.7")
Depth 711mm (28.0")
Weight 37kg* (82lb)
