Spirit FX8 (discontinued)

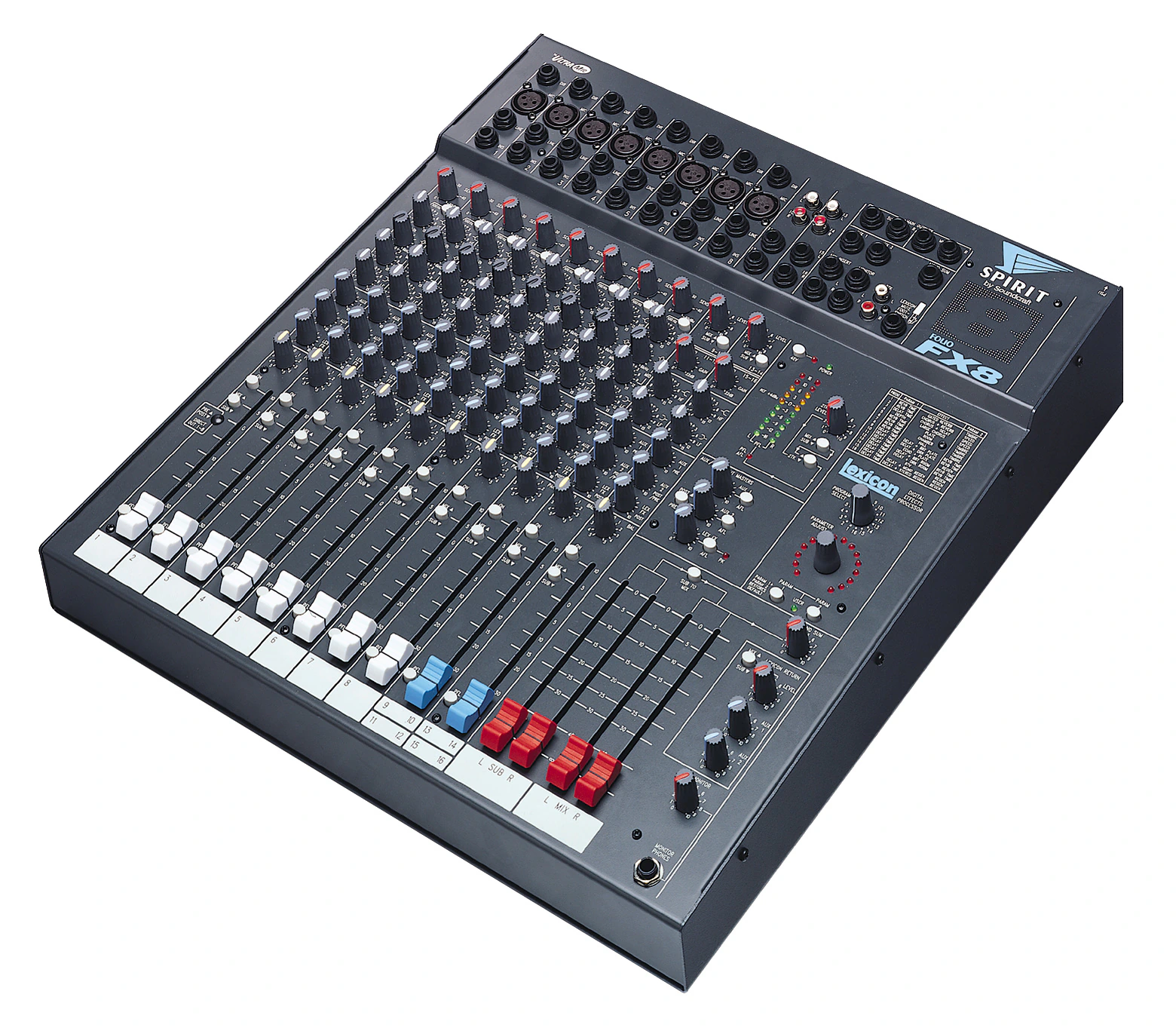

Spirit FX8
Larger Images
These days there's simply no excuse for a live mixer to give anything away to a studio mixer in terms of audio quality. With its combination of live and recording-oriented features, plus all the usual benefits, the FX8 is ideal for both stage and studio use, and is particularly suitable for live recording.

FX8 is a flexible 4-bus mixer capable of producing Digital sound quality for both live and recording applications. It features a specially designed 16 program Lexicon Effects Section with dual effect capability (including Chorus and Reverb, Chorus and Delay , and Reverb and Delay) and fully editable and storable programs and parameters., The console itself includes 8 mic/line inputs and 18 inputs to mix in total (including 4 stereo inputs and tape return to mix). In addition to the mix outs, two sub-buses allow groups of instruments to be sent to multitrack, to additional speakers, or sub-grouped to mix. FX8's 8 Direct Outs are individually fader pre-post switchable so they are equally useful for recording in the studio or at a gig.

All FX8's 8 mic/line inputs are equipped with UltraMic™ preamp which provides a full 60dB of gain range and +22dBu of headroom, meaning that the FX8 input stage can handle virtually any mic or line device. In the EQ section, a "truly British 3-band EQ" with swept mid benefits from custom designed pots which give greater control across carefully chosen frequencies. There are 2 Auxiliary Sends, including a dedicated Lexicon effects send, 1 pre-fade send and 1 pre/post-fader selectable send which is equally useful as an extra foldback send in monitor-heavy live applications, or as an effects send in studio mixdown situations. In addition, there are four Stereo inputs, a separate Mono Sum Output and 2 Subgroup Outputs.

100mm faders are used throughout, giving more accurate control during complex mixes than standard 60mm designs, and all pots have been custom designed to give even and consistent response around their entire sweep. The use of the latest PCB surface mount technology means that FX8 fits all of these features into a rugged, compact frame which can be optionally rack-mounted into a 10U space.


  • Live Sound:
  • Bands, Small Venues, Clubs, Conferences, Schools, Houses of Worship
  • Studio Recording:
  • Digital/Analogue Multitracking (8 track), Small/Home Studios, Pre-/Post-Production • 18 inputs as standard

Key Features:
  • 8 mono channels with high quality UltraMic™ pre-amps
  • 4 stereo inputs
  • 4-bus architecture, with sub-group routable to mix
  • Direct outputs from channels 1 to 8 for multitrack recording
  • Direct outputs can be switched globally pre- or post-fade
  • Inserts on all mono channels
  • Inserts on stereo mix bus
  • 3-band 'British' EQ with swept mid-band
  • Stereo 18dB/octave 100Hz high-pass filter to cut stage rumble
  • +48V phantom power
  • Channel On switch fur Mute control
  • 10-segment tri-coloured metering
  • Two sub-group outputs
  • Separate mono sum output



  Version Language Size Uploaded
Owners Manuals
file type icon Spirit FX8 Owner's Manual-English
en updated: Nov 2023
  en  3.05 MB Nov 2023
file type icon Spirit FX8 Brochure-English
en updated: Nov 2023
  en  2.96 MB Nov 2023
