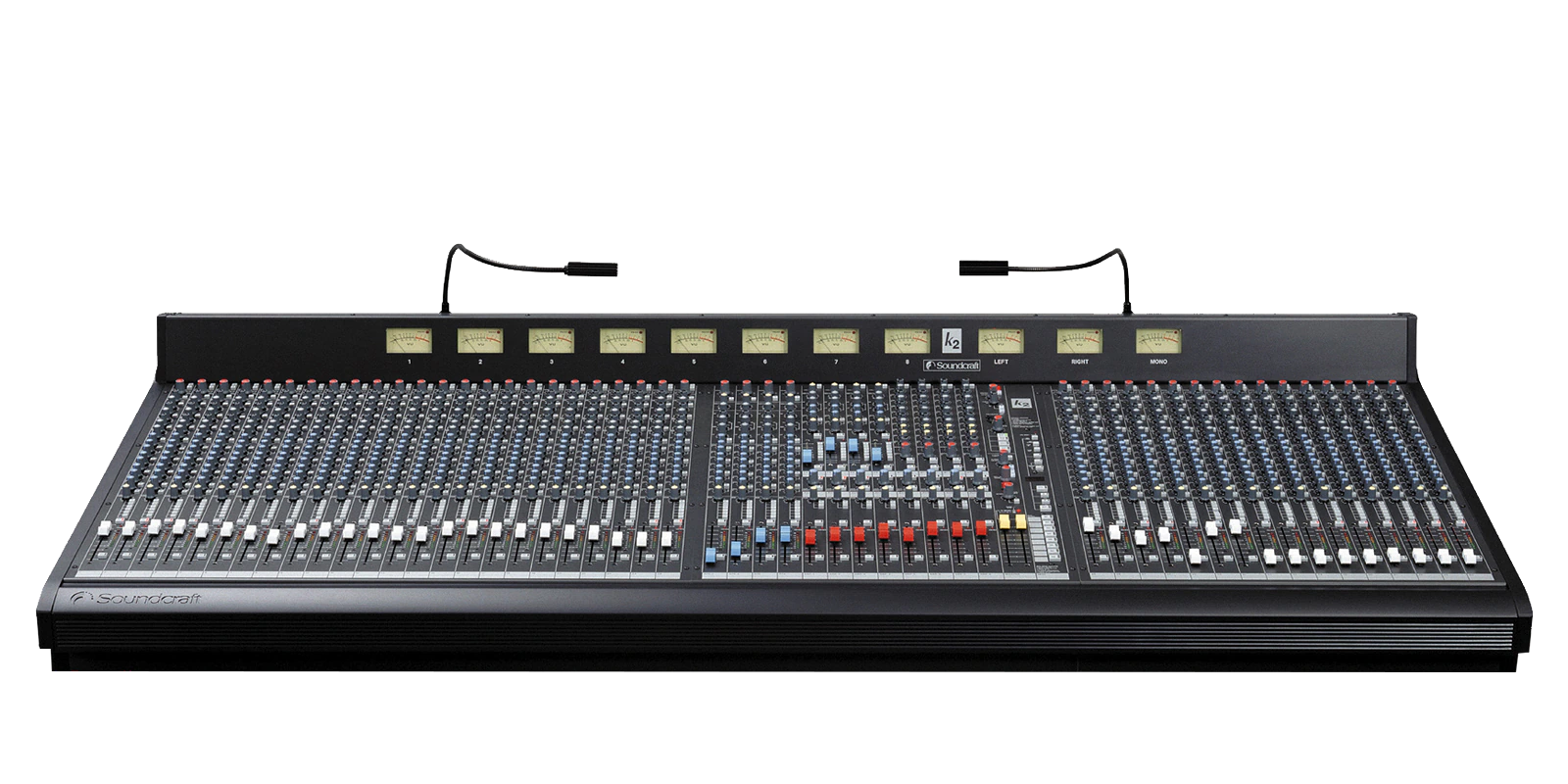

k2 (discontinued)

Larger Images

Sometimes there’s just no substitute for experience. Live sound puts special demands on both equipment and personnel, because there’s no second take, and because anything less than total reliability can mean disaster. Then there’s the physical punishment of touring, and the need to work in a wide variety of environments.

After more the 25 years of designing and building mixers for professional live sound, Soundcraft has earned a reputation that’s second to none, because we listen to engineers at the cutting edge, and take notice. The k2 is our most cost-effective fully-featured 8-bus live console ever, taking advantage of Soundcraft’s long experience in live sound to deliver, in a straightforward package, all the facilities you need for a first-rate production.

The k2 includes many features that you’d expect only on a much bigger console - like an advanced solo system, true left-centre-right bussing, a built-in matrix, and full 4-band EQ - equipping it for a range of applications from touring with bands to fixed installations in theatres, clubs, or places of worship. The desk is available in three frame sizes from 24 to 48 mono input channels, with an additional eight stereo input channels.


Key Features:

  • Wide-range, low-noise input pre-amp with switchable ‘Range’, as used Vienna II and Europa
  • Sweepable High-pass filter
  • Four-band EQ with two swept mids plus switchable Q
  • 8 Aux sends with external pre/post switching in pairs
  • 8-segment LED input metering on every channel
  • Midi-controlled muting system with 8 mute groups plus MIDI program change
  • 8 mono subgroups
  • Stereo plus mono mix buses
  • 8 stereo returns (four on full length strips)
  • 11x4 Matrix
  • VU output meterbridge fitted as standard
  • Master facilities include oscillator, talkback, monitor outputs and solo control
  • ‘Swap’ mode allows the aux outputs to access the group fader and insert point, or use on foldback mixes
  • The console is available in 24, 32, 40 and 48ch sizes

Downloads

  Version Language Size Uploaded
Owners Manuals
k2 Owner's Manual-English   en  2 MB Nov 07, 2016
User Guide - Portuguese     2.49 MB Nov 07, 2016
PSU User Guide CPS250/275   en  456 KB Nov 07, 2016
k2 Owner's Manual-Spanish   es  25.4 KB Nov 07, 2016
Brochures
k2 Brochure-English   en  840 KB Nov 07, 2016
