Signature 22 MTK

Mix, record and produce your Signature sound

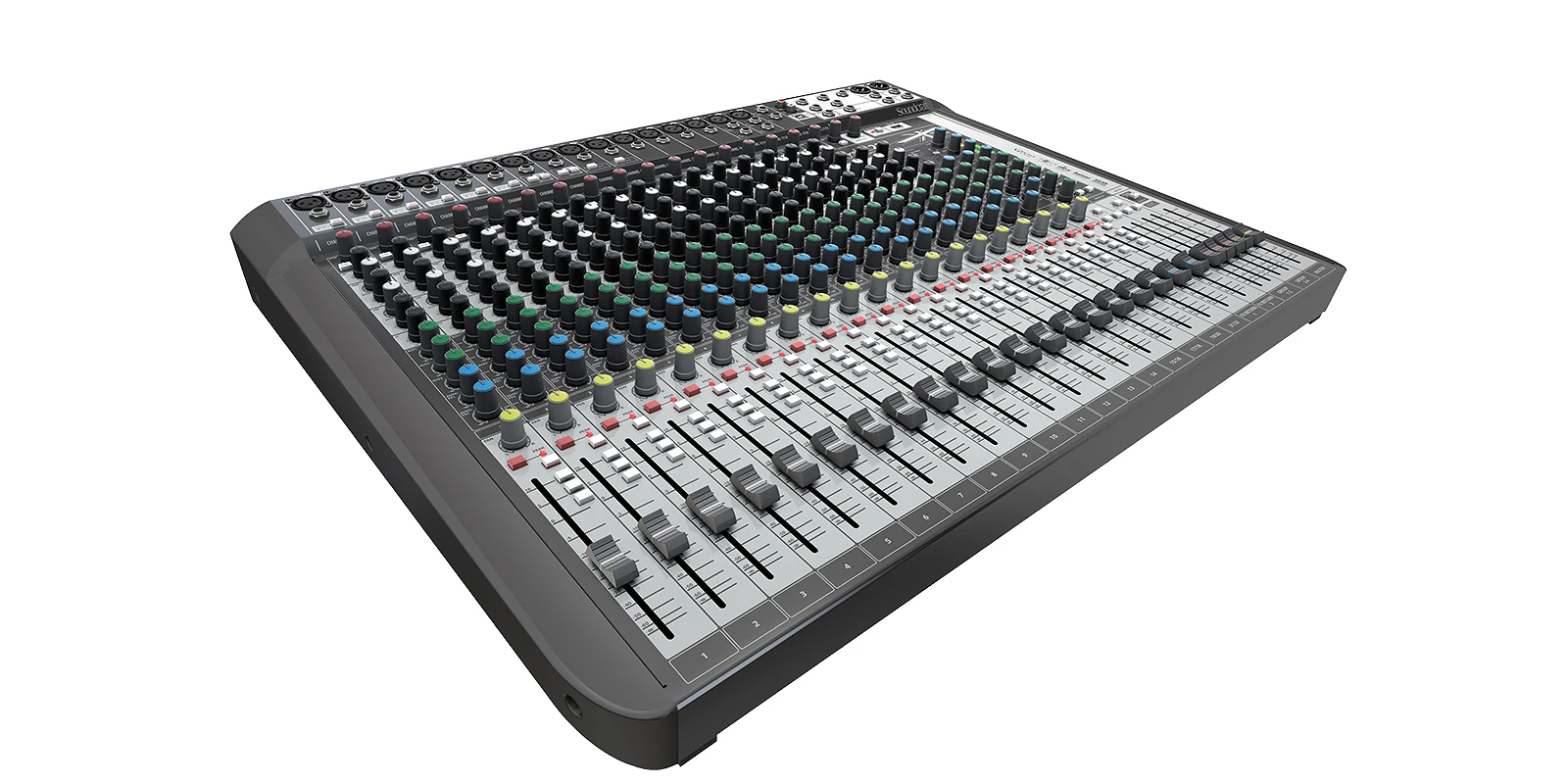

Signature 22 MTK
Larger Images


The Soundcraft Signature 22MTK incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. In addition, the console’s multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite.

The console is designed to deliver pristine recordings. Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

The Soundcraft Signature 22MTK features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.

Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.



The Ableton Live 10 Lite software is an included download with all Signature MTK consoles. Feed your creativity with this fast, flexible sequencing and workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.



Varients

  Signature 10 Signature 12 / 12 MTK Signature 16 Signature 22 / 22 MTK
Channels 10 12 16 22
Soundcraft® Ghost Preamps 6 8 12 16
Soundcraft® Sapphyre EQ 3-band (1 band of swept mids) 3-band (1 band of swept mids) 4-band (2 bands of swept mids) 4-band (2 bands of swept mids)
dbx® Limiters on inputs 2 2 4 8
Lexicon® Effects Single Engine Single Engine Single Engine Dual Engine
USB Interface 2-in/2-out 2-in/2-out (14-in/12-out on 12 MTK) 2-in/2-out 2-in/2-out (24-in/22-out on 22 MTK)
Auxes 3 3 4 5
Subgroups 0 2 mono/1 stereo 4 mono/2 stereo 4 mono/2 stereo
Faders 60mm 60mm 100mm 100mm

Videos

Features

  • High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback
  • 24-in/22-out ultra-low latency USB playback and recording interface*
  • Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
  • Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
  • Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
  • dbx® Limiters (High-ratio Compressors) on input channels
  • Switchable Hi-Z inputs for guitars, basses and other instruments
  • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
  • Comprehensive Soundcraft® GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
  • Smooth premium-quality 100mm faders
  • Robust metal construction for tour-grade build quality and reliability
  • Internal universal power supply

* USB Interface Compatibility:
PC: Supports Windows 7, Windows 8 and Windows 10.
Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan

Downloads

  Version Language Size Uploaded
Other Software
platform icon Soundcraft Multichannel USB Audio Driver V3.20
updated: Mar 2019
    1.28 MB Mar 2019
  Version Language Size Uploaded
Extras
file type icon Signature 22MTK Outline Dimensions (DXF file)
en updated: Mar 2024
  en  59.1 MB Mar 2024
file type icon Signature 22MTK Outline Dimensions (PDF file)
en updated: Mar 2024
  en  698 KB Mar 2024
Brochures
file type icon Soundcraft Signature Brochure
en updated: Mar 2024
  en  788 KB Mar 2024
file type icon Soundcraft Signature MTK Brochure
en updated: Mar 2024
  en  1.24 MB Mar 2024
Owners Manuals
file type icon Signature 16/22/22MTK User Guide
en updated: Mar 2024
  en  10.8 MB Mar 2024
file type icon Signature MTK Recording Guide
en updated: Mar 2024
  en  7.85 MB Mar 2024
file type icon Signature 16/22/22MTK User Guide (German)
de updated: Mar 2024
  de  3.27 MB Mar 2024

Specifications

Height 109mm (4.3")
Width 490mm (19.3")
Length 660mm (26.0")
Weight 11.36kg (25.1lb)
