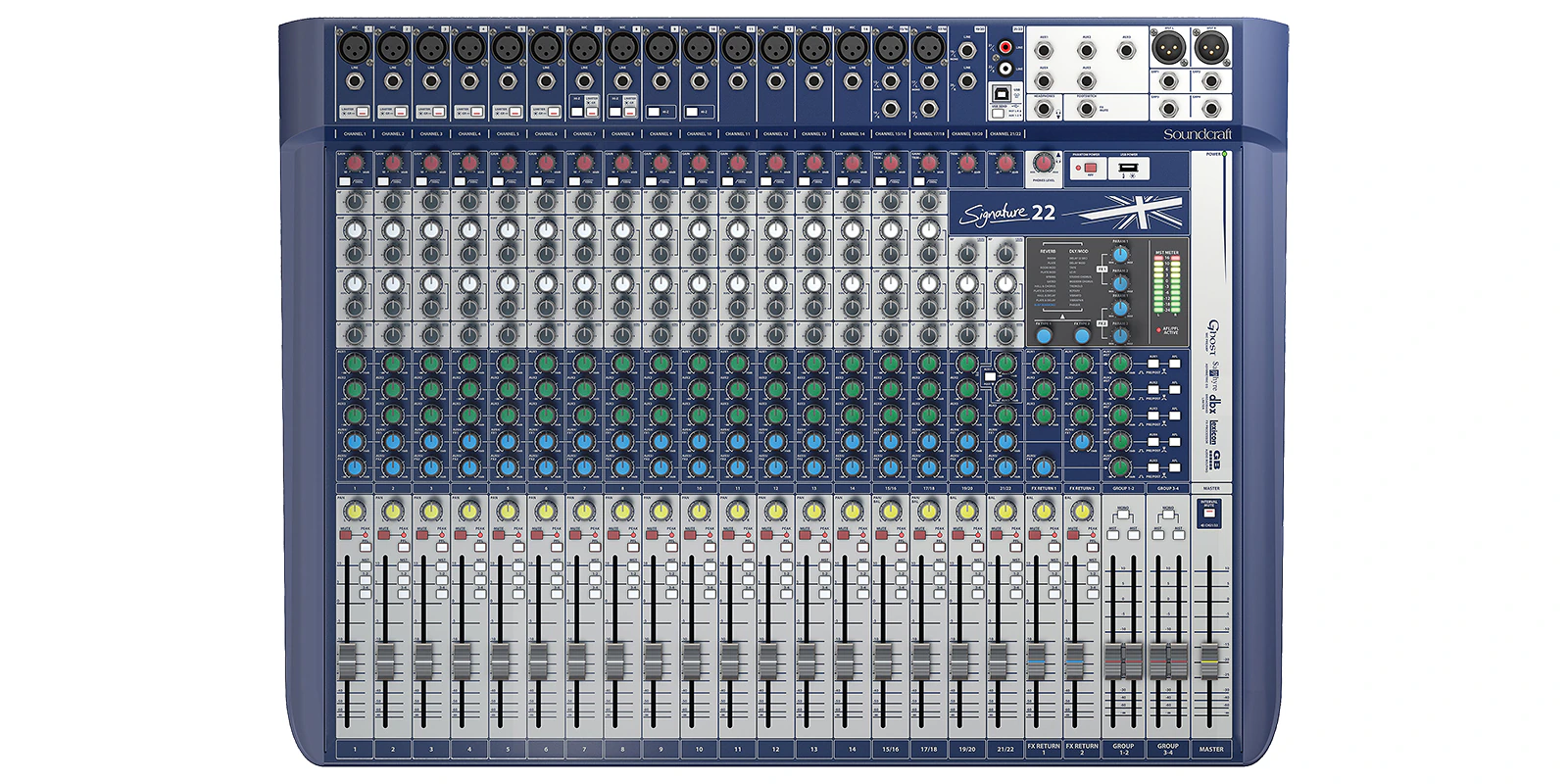

Signature 22

Compact analogue mixing - your Signature sound

Signature 22
Larger Images


All Soundcraft Signature Series consoles incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 10 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.



The Ableton Live 10 Lite software is an included download with all Signature Series consoles. Feed your creativity with this fast, flexible sequencing and workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.



Varients

  Signature 10 Signature 12 / 12 MTK Signature 16 Signature 22 / 22 MTK
Channels 10 12 16 22
Soundcraft® Ghost Preamps 6 8 12 16
Soundcraft® Sapphyre EQ 3-band (1 band of swept mids) 3-band (1 band of swept mids) 4-band (2 bands of swept mids) 4-band (2 bands of swept mids)
dbx® Limiters on inputs 2 2 4 8
Lexicon® Effects Single Engine Single Engine Single Engine Dual Engine
USB Interface 2-in/2-out 2-in/2-out (14-in/12-out on 12 MTK) 2-in/2-out 2-in/2-out (24-in/22-out on 22 MTK)
Auxes 3 3 4 5
Subgroups 0 2 mono/1 stereo 4 mono/2 stereo 4 mono/2 stereo
Faders 60mm 60mm 100mm 100mm

Videos

Features

  • High-Performance 22-input small format analogue mixers with onboard effects
  • Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
  • Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
  • Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
  • dbx® Limiters (High-ratio Compressors) on input channels
  • 2-in/2-out USB audio playback and recording*
  • Switchable Hi-Z inputs for guitars, basses and other instruments
  • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
  • Comprehensive Soundcraft® GB Series audio routing
  • Smooth premium-quality faders
  • Robust metal construction for tour-grade build quality and reliability
  • Internal universal power supply

* USB Interface Compatibility:
PC: Supports Windows 7, Windows 8 and Windows 10.
Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan

Downloads

  Version Language Size Uploaded
Other Software
platform icon Soundcraft Multichannel USB Audio Driver V3.20
updated: Mar 2019
    1.28 MB Mar 2019
  Version Language Size Uploaded
Brochures
file type icon Soundcraft Signature Brochure
en updated: Mar 2024
  en  788 KB Mar 2024
Owners Manuals
file type icon Signature 16/22/22MTK User Guide
en updated: Mar 2024
  en  10.8 MB Mar 2024
file type icon Signature 16/22/22MTK User Guide (German)
de updated: Mar 2024
  de  3.27 MB Mar 2024

Specifications

Height 109mm (4.3")
Width 490mm (19.3")
Length 660mm (26.0")
Weight 11.06kg (24.4lb)
