Series TWO (discontinued)

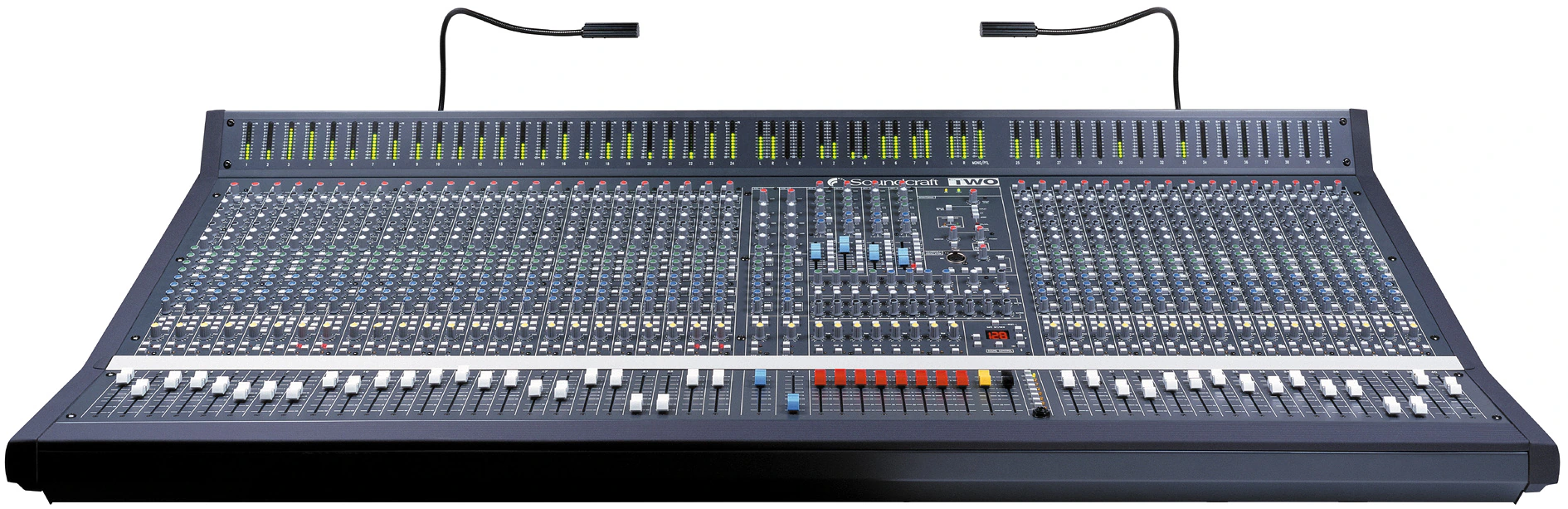

Series TWO
Larger Images

Now Soundcraft announces the Series TWO: a classic live console feature set combined with class-leading engineering and big-console looks, but at a ground-breaking price.

Series TWO embodies the classic 8-group, 8-Aux format pioneered for live sound by Soundcraft in the 1970’s, and which has since become the defacto standard in mid-range console specification.

As well as that, there are new features like sweepable high-pass filters on every input, high-resolution LED input metering, and midi-controlled snapshot muting. Outputs are augmented by left, right and centre busses, plus an 11x2 Matrix section, as well as the 8 Aux and 8 group outputs.

The latest in innovative circuit design brings the benefit of 25 years of audio experience to the Series TWO, ensuring outstanding sound quality, and the console boasts a brand new mic preamp design with ultra-low noise and distortion.


Key Features:

  • Three frame sizes : 24, 32 and 40 channel
  • Classic raked frame design, with flat fader tray
  • Wide-range Input stage with switchable 48V and Phase Reverse
  • Variable frequency High Pass Filter with separate In/Out switch
  • Classic 4-band Soundcraft EQ with two swept mids and EQ In/Out switch
  • 8 mono Auxes, with Pre/Post fader switching in pairs, and pre/post EQ switch
  • 8 Group busses, routable in pairs, plus Left, Right and Mono
  • Direct Output from each channel with Pre button to allow recording feeds
  • Integral meterbridge with LED input and output metering
  • Two fully featured Stereo line inputs as standard
  • 4 Stereo returns with routing, Auxes and ‘Tilt’ EQ
  • 11x2 Matrix as standard
  • MIDI Mute system : 8 manual mute groups plus 128 MIDI-controllable mute snapshots
  • Master section includes SOLO (PFL and SIP), Talkback, oscillator and 2-Track Return
  • Separate Power Supply

Downloads

  Version Language Size Uploaded
Owners Manuals
file type icon Series TWO Owner's Manual-English
en updated: Nov 2023
  en  1.93 MB Nov 2023
Brochures
file type icon Series TWO Brochure-English
en updated: Nov 2023
  en  999 KB Nov 2023
