RM1d / RM1ds (discontinued)

RM1d / RM1ds
Larger Images

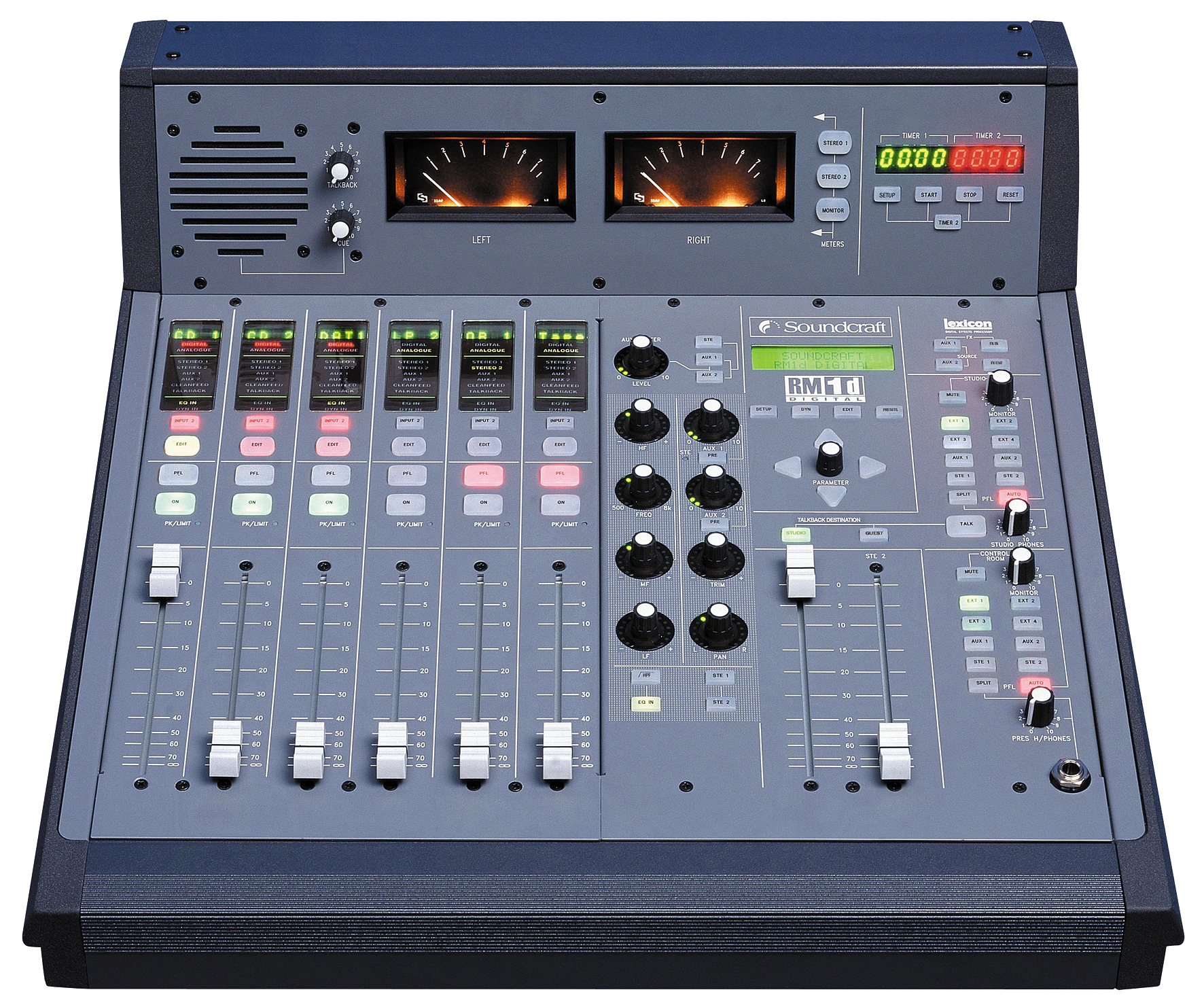

The RM1d is Soundcraft’s first digital On-Air radio console. Designed for quality-conscious self-op studios, it combines the benefits of an all-digital signal path with the simplicity of control previously associated with analogue consoles. A pool of assignable digital and analogue inputs are provided.


Key Features:

  • 6-fader and 12-fader-plus-script-tray frames
  • 4x mono mic/line inputs with switchable 48V (8x on 12-fader)
  • Analogue inserts on two of the mic/line inputs (4x on 12 fader)
  • 2x analogue stereo line inputs (4x on 12-fader)
  • 4x AES/EBU inputs plus 1xS/PDIF input (8x AES, 2x S/PDIF on 12-fader)
  • 4x analogue clean feed outputs (6x on 12 fader) allow telco operation
  • Analogue outputs for Main Programme x2, Aux, PFL, Control Room and Studio
  • Headphone outputs for C/RM, Studio and Guest
  • 4x stereo analogue External Monitor Source inputs
  • 2x AES/EBU and 1x S/PDIF outputs (4x AES and 2x S/PDIF on 12-fader)
  • Fader start/cue lamp relays output on all channel faders
  • Each input channel has gain trim, dynamics processor, 3-band EQ, 2x mono (or 1x stereo) Aux send and Pan control, via central assignable strip
  • All console settings can be stored in configuration memories (Presets)
  • Integral meterbridge, with VU or PPM meter options plus dual timers and Cue speaker

For product availability and pricing please contact your local dealer.

Downloads

  Version Language Size Uploaded
Owners Manuals
file type icon RM1d / RM1ds Owner's Manual-English
en updated: May 2023
  en  4.08 MB May 2023
file type icon RM1d / RM1ds Owner's Manual-Spanish
es updated: May 2023
  es  277 KB May 2023
Brochures
file type icon RM1d / RM1ds Brochure
updated: May 2023
    1.84 MB May 2023
