MH3 (discontinued)

Larger Images

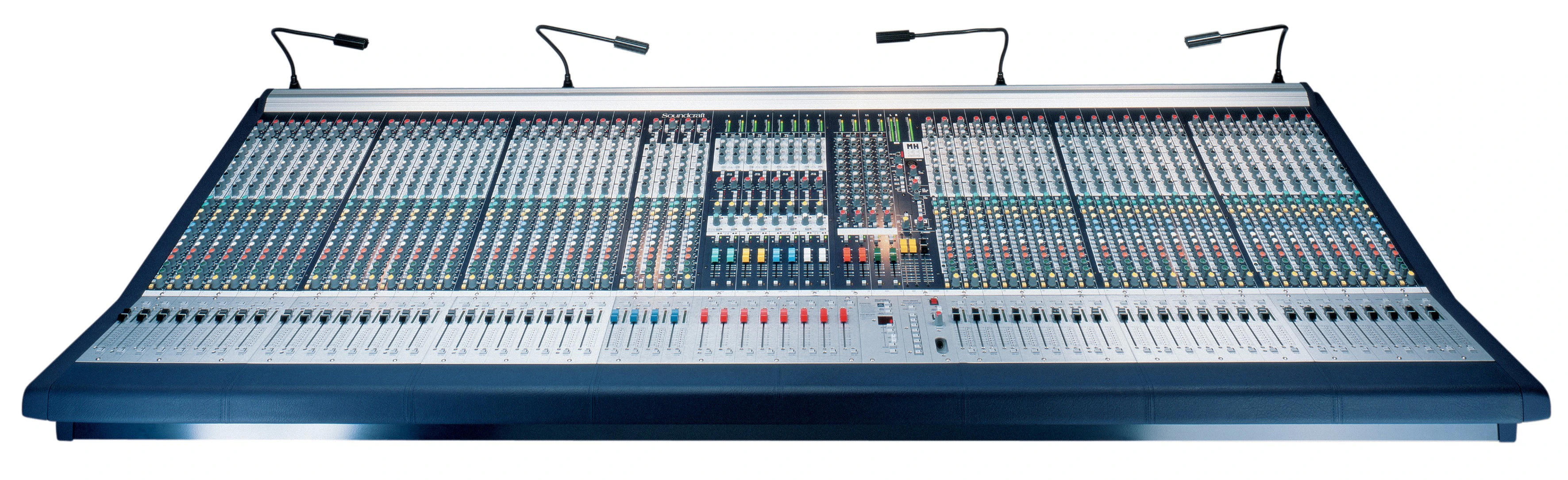

Don't be fooled by its modest price tag. Ideally suited for both Front-of-house and Monitor use, the new Soundcraft MH3 provides sound contractors and venues with the critical commercial advantage of complete console flexibility. All it takes is the touch of a button to place either Groups or Aux Masters onto faders, delivering intuitive and uncompromised operation in either application. The MH3 is available in five frame sizes with legendary Soundcraft sound quality delivered via a new high-headroom mic amp, classic British EQ and rigorous circuit design.

What’s more, the MH3 is a true modular console. Channels can be quickly removed and replaced in blocks of eight, making it easy to configure the MH3 to meet the user’s precise requirements and ensuring the robust reliability a life on the road necessitates. A professional, modular, dual-purpose live sound console at a truly affordable price? Welcome to the Soundcraft MH3.

Features

  • Versatile design, allowing FOH, Monitors, or Monitors from FOH configurations
  • Semi-modular in blocks of 8 for flexible layouts and easy serviceability
  • Frame sizes 24 mono/4 stereo, 32 mono/4 stereo, 40 mono/4 stereo, 48 mono/4 stereo, 56 mono/4 stereo
  • Flexible Auxiliary Bus structure with 2 stereo sends for in-ear monitoring
  • 8 group busses and 12 aux busses in FOH mode
  • 12 monitor busses (12 mono, or 8 mono + 2 stereo) in Monitor mode
  • Swap mode allows fader control of Aux outputs in Monitor mode
  • Integral 12x4 matrix, can be expanded to 12x8 with optional matrix module
  • 3-band EQ on FX Returns 1-8, switchable to Group or Aux outputs
  • New Mic Amp design with high headroom and outstanding CMRR
  • New EQ design with focused response
  • LCR panning on inputs
  • 8 VCA groups and 8 Mute groups with snapshot automation and MIDI control
  • Integrated control of BSS Audio Varicurve and dbx DriveRack
  • Integral LED bargraph metering for all inputs and outputs
  • Optional VU output meterbridge

Downloads

  Version Language Size Uploaded
Brochures
MH3 Brochure-English   en  4.36 MB Nov 07, 2016
Brochure-Japanese     243 Bytes Nov 07, 2016
Owners Manuals
MH3 Owner's Manual-English   en  1.76 MB Nov 07, 2016
Owner's Manual (Portuguese)     243 Bytes Nov 07, 2016
Extras
PSU User Guide CPS800     1.22 MB Nov 07, 2016
