MFX (discontinued)

MFX
Larger Images

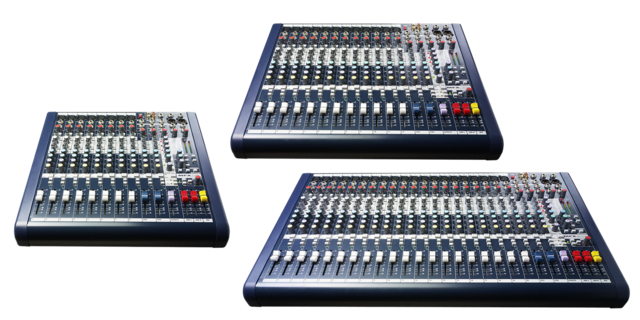

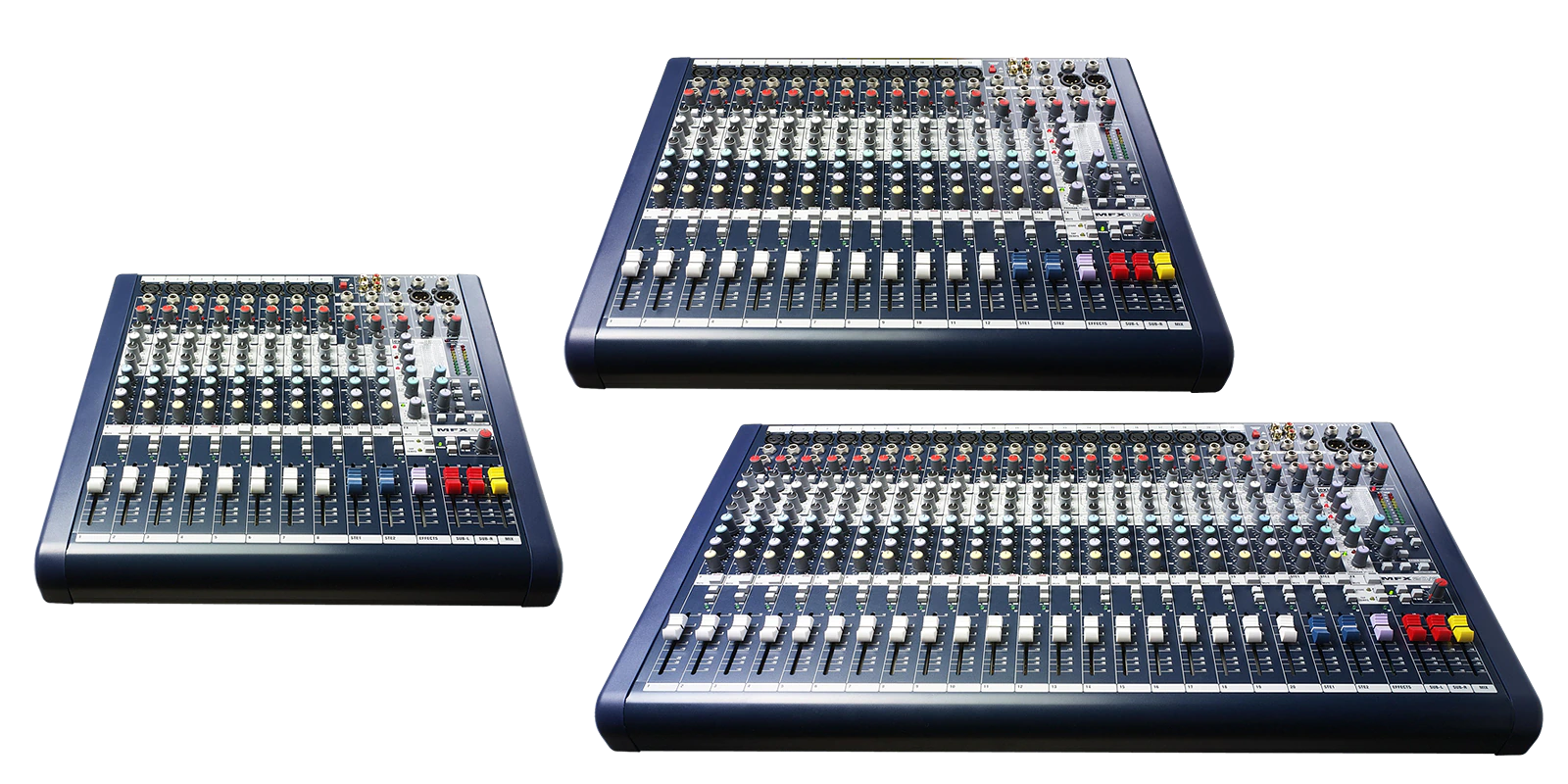

(MFX8, MFX12, MFX20)

The MFX Series combines all the features of the popular Soundcraft MPM™ mixer with a built-in 24-bit, digital, Lexicon® effects processor, expanding the Soundcraft low-cost, multi-purpose compact range.

The Soundcraft MFX™ mixer uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.

The effects section fits neatly into the mixers compact framework which is available in 8, 12 or 20 mono input variants, both with 2 stereo channels and an effects send on each channel. There are 32 different effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level clip LED and Mute function gives the user even more flexibility.

The emphasis with the Soundcraft MFX is very firmly on quality build and audio performance, with an easy to understand control surface in line with the Soundcraft professional range. The Soundcraft MFX uses the highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles).The Soundcraft MFX also offers all the features of the Soundcraft MPM most notably two configurable aux sends, two groups, XLR and 1/4" metal jack connector sockets, RCA phono stereo playback inputs and record outputs, 3-band EQ with a swept mid on the mono inputs, 3-band EQ on the 2 stereo inputs, TRS insert sockets, inserts on all mono inputs, ten-segment LED output metering and a headphone output.


Hear the effects More info...


Key Features:

  • 8+2, 12+2 and 20+2 channel input frame-sizes
  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • Tap Tempo and FX setting store function
  • 1 FX send on each channel
  • 2 configurable Aux busses
  • 2 Stereo Inputs
  • 2 Group busses
  • Stereo Mix Output
  • 2-track record output
  • 2-track replay input with level control
  • Globally switched +48V Phantom Power
  • GB30 Mic Preamps
  • Peak LED
  • 100Hz HPF
  • Insert point (mono channels)
  • 3-band EQ with swept Mid band on mono inputs
  • 3-band EQ on stereo inputs
  • PFL switch
  • Mix and group routing
  • Signal Present LED
  • 60mm fader
  • Headphone and Control Room outputs with level control
  • 8+2 and 12+2 models rack-mountable (ears sold separately)
  • Integral universal power supply

The Soundcraft MFX will find itself in many applications including live music, recording, houses of worship and multi-speaker installations and is easily rack mountable.

For product availability and pricing please contact your local dealer.

Downloads

  Version Language Size Uploaded
Brochures
file type icon MFX Brochure-English
en updated: May 2023
  en  21.3 MB May 2023
file type icon MFX Brochure-Chinese
zh updated: May 2023
  zh  1.52 MB May 2023
Owners Manuals
file type icon MFX Owner's Manual-English
en updated: May 2023
  en  5.59 MB May 2023
file type icon MFX Owner's Manual-French
fr updated: May 2023
  fr  5.56 MB May 2023
file type icon MFX Owner's Manual-German
de updated: May 2023
  de  5.57 MB May 2023
file type icon MFX Owner's Manual-Spanish
es updated: May 2023
  es  5.59 MB May 2023
