FIVE Monitor (discontinued)

Larger Images

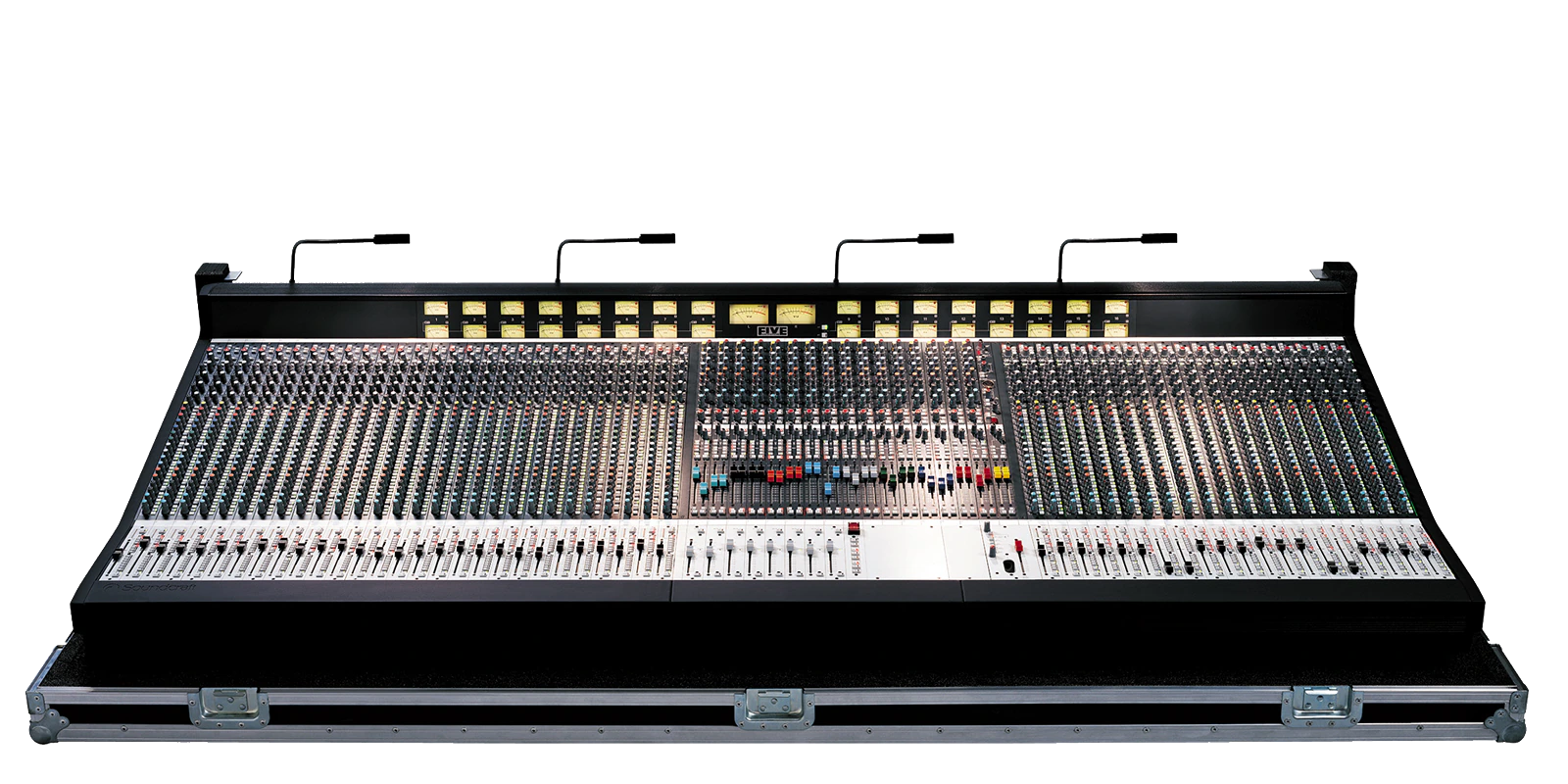

Series FIVE Monitor is a dedicated Monitor mixing console designed to meet the exacting requirements of today’s major tours and installations. With input channels boasting a feature set similar to that of the highly-respected FIVE Front-Of-House console, FIVE Monitor offers an equally high level of control over stage sources as its brother, but adds to this the comprehensive routing and Output control required from a Monitor console. In response to the demand for larger, more complex Output capability, FIVE Monitor is available in two frame types - 24-bus and 32-bus. The 24-bus version includes as standard a 23 x 12 Output Matrix, giving an impressive maximum Output capability of 38 balanced Outputs. The 32-bus frame has as standard a 23 x 16 Output Matrix, making a massive total of 50 balanced Outputs. The proliferation of stereo Keyboard or Submix sources, in addition to the trend towards in-ear monitoring, means that stereo Output capability is now no longer a luxury option: both FIVE Monitor frame types support stereo Outputs - 9 stereo on the 24- bus, and 17 stereo on the 32-bus console.

The 24-bus console is available with 44, 52 or 60 input channels. The 32-bus console is available with 40, 48 or 56 input channels.

For those situations which demand that Outputs feed a combination of different systems (wedges, in-ear), the FIVE Monitor offers TWO SOLO systems - regular SOLO and ALT SOLO. Via a simple switch on the Outputs, each Group and Matrix Output bus may be set to send to either of these SOLO systems, making setup of accurate SOLO configur-ations (perhaps a Main wedge on SOLO, and an engineer In-Ear set on ALT SOLO) a simple task.

In addition, via a special pair of auxiliary MIDI ports, the FIVE Monitor can send messages to a BSS FPC-900 Varicurve™ Remote Controller or dbx DriveRack™ to select particular slave EQ devices in a rack whenever a FIVE Monitor Output SOLO is activated. This accelerates considerably the process of SOLOing and editing an Output EQ. Of course, all of this is packaged in the rugged, road-proven frame of the FIVE, designed to keep weight and size to a minimum without sacrificing mechanical integrity. The package is completed by the addition of the same acclaimed all-new FIVE power supply design - the CPS2000, featuring built-in redundancy link, industry standard linear circuit design and plenty of headroom.

Downloads

  Version Language Size Uploaded
Owners Manuals
FIVE Monitor User Guide   en  2.82 MB Nov 04, 2016
User Guide   en  2.94 MB Nov 04, 2016
PSU User Guide CPS2000   en  2.13 MB Nov 04, 2016
Brochures
FIVE Monitor Brochure-English   en  2.56 MB Nov 04, 2016
