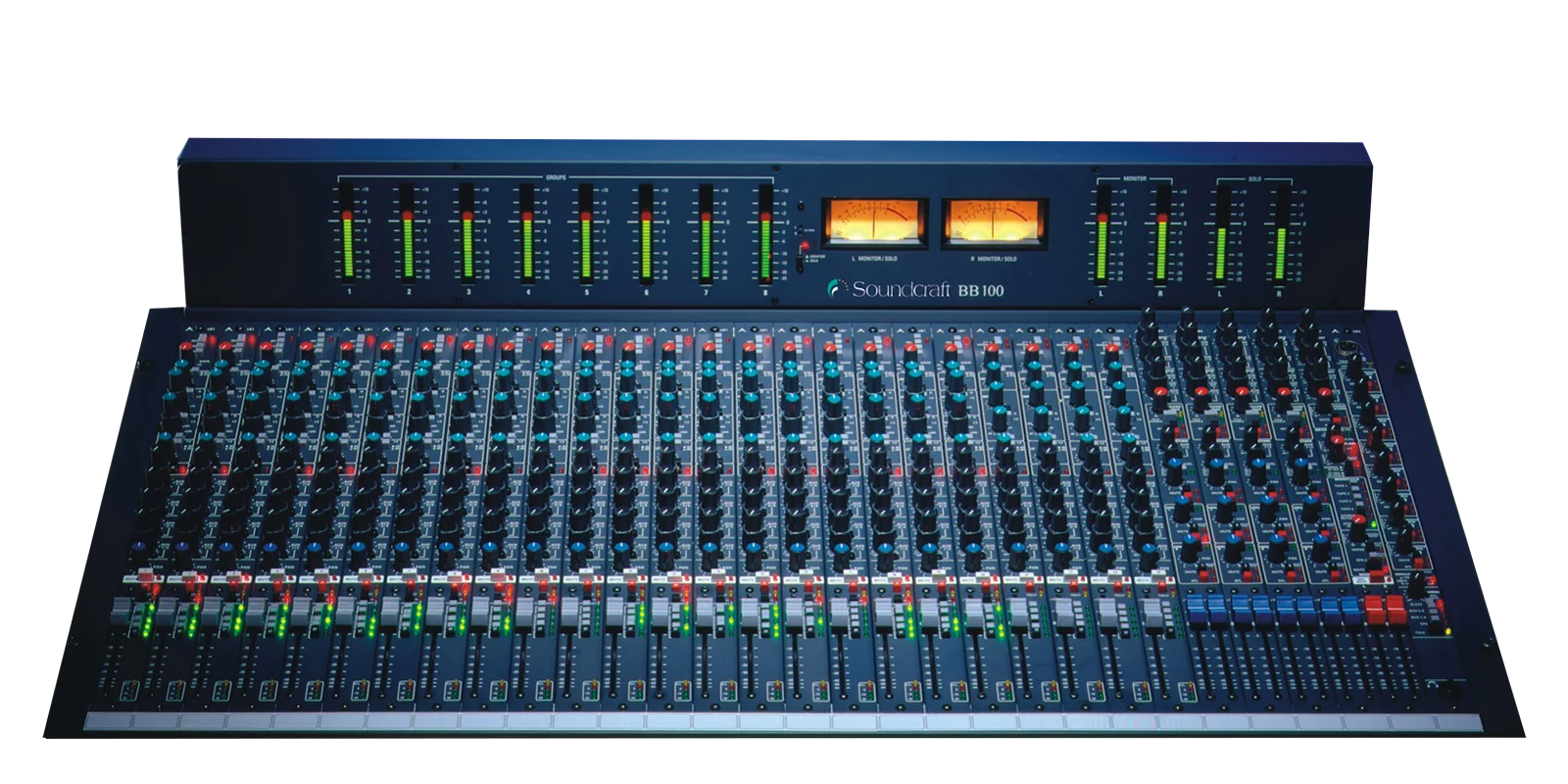

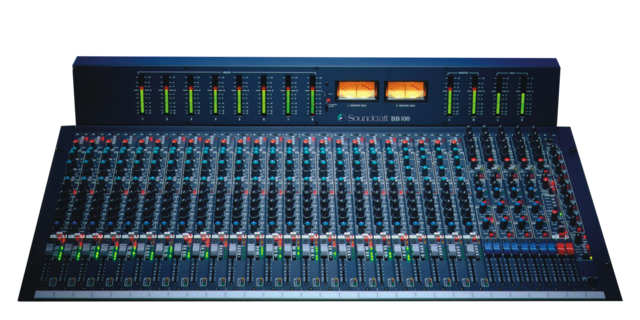

BB100 (discontinued)

BB100
Larger Images

Designed to satisfy your need for a more cost effective, small format audio console for Production and On-Air applications BB100 is packed with all the features you needed, all the performance you expect and all the reliability you demand.

BB100 is available in configurations from 10 to 32 input channels, with four stereo or eight mono subgroups, and offering fully balanced input and output connections, the BB100 features four internal mix minus feeds as standard and is easily configurable for a variety of custom options through internal factory-set links.

For product availability and pricing please contact your local dealer.

Main Features

  • 4 chassis sizes
  • Up to 32 channels
  • Up to 8 subgroups
  • 8 Aux busses, Aux 1-2 can be configured as stereo
  • Up to 4 Cleanfeed Outputs with talkback
  • Stereo PFL/AFL buss
  • Balanced Mic/Line inputs
  • Stereo channels have M-S (Sum and Difference) switches
  • 4 band EQ on mono channels
  • 3 band EQ on stereo channels
  • Both have swept mids with adjustable Q and In/Out switch
  • Soft mute circuits
  • External mutes
  • Fader starts
  • Conductive plastic faders
  • LED indication of all important switches
  • Direct outputs on all mono input channels
  • Major inputs and outputs are balanced
  • Up to 5 stereo FX returns
  • Main meters can be BBC/DIN PPM's or VU's
  • On-Air signalisation
  • Many internal jumper links for user configuration

Downloads

  Version Language Size Uploaded
Brochures
file type icon BB100 Brochure-English
en updated: Mar 2024
  en  1.96 MB Mar 2024
Owners Manuals
file type icon BB100 Owner's Manual-English
en updated: Mar 2024
  en  4.12 MB Mar 2024
