Analogue Interface (discontinued)

Analogue Interface
Larger Images

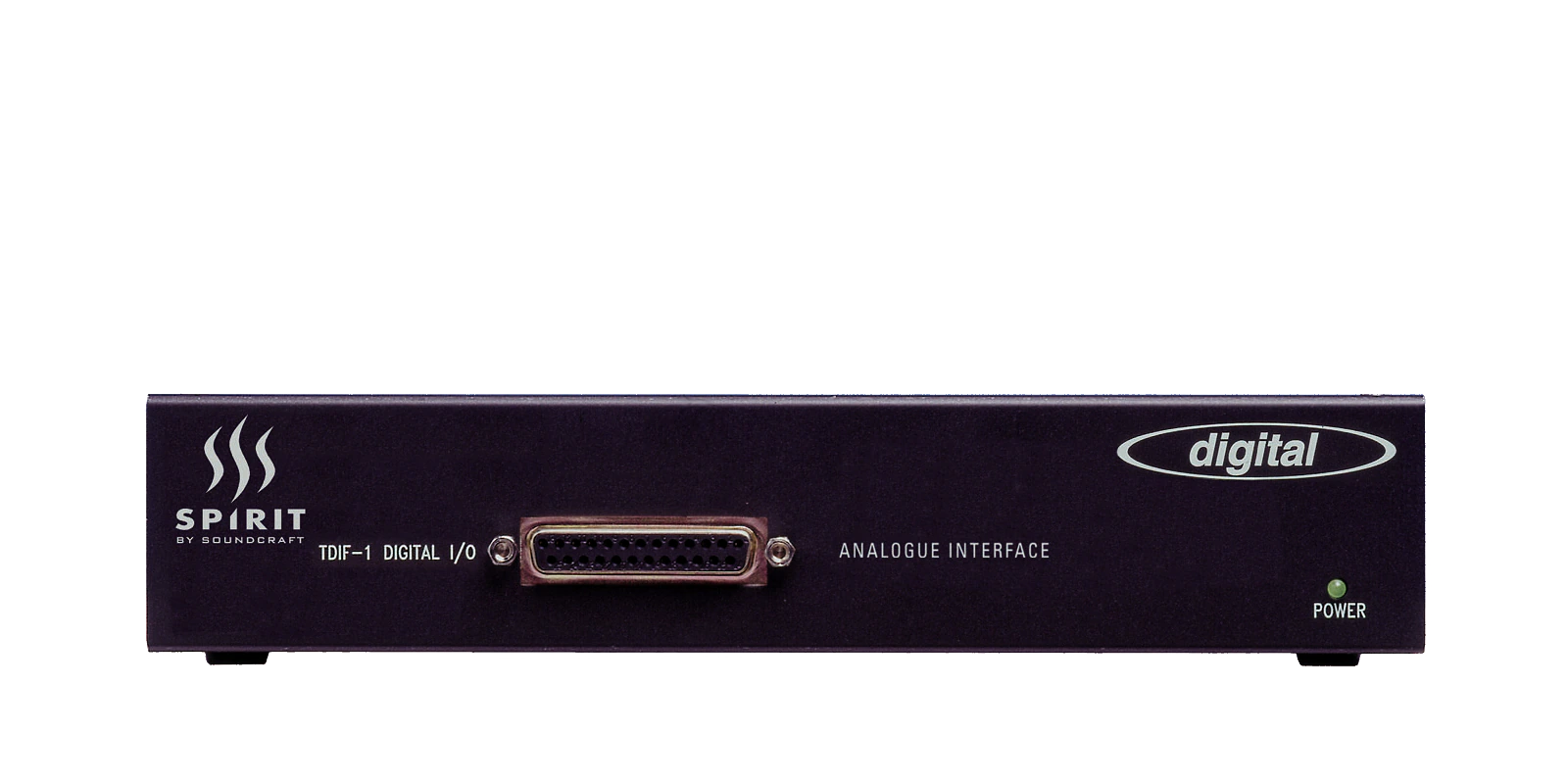

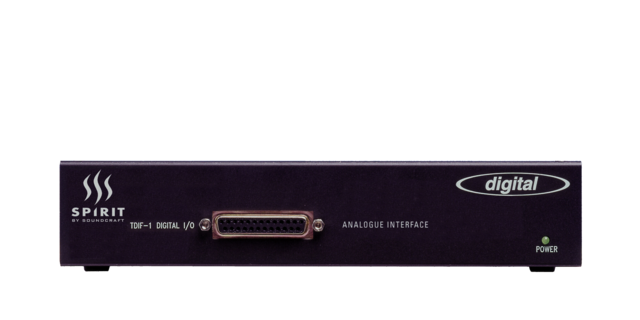

The analogue interface converts the digital TDIF port on the rear of all Soundcraft Digital consoles into 8 analogue Phono (RCA) inputs and 8 analogue Phono (RCA) outputs. All conversion is done using 20-bit technology. The unit allows a standard analogue multitrack to be connected, or to add 8 extra analogue inputs when you need to expand your operation. It will also allow the 8 TDIF outputs to be fed to units accepting analogue inputs. The Interface requires 1U half rack space and is shipped with power supply.

Downloads

  Version Language Size Uploaded
Brochures
file type icon Analogue Interface Brochure-English
en updated: Nov 17, 2021
  en  222 KB Nov 17, 2021
Owners Manuals
file type icon Analogue Interface Owner's Manual-English
en updated: Nov 17, 2021
  en  207 KB Nov 17, 2021
Extras
file type icon Images - High Resolution
updated: Nov 17, 2021
    222 KB Nov 17, 2021
file type icon Images - Low Resolution
updated: Nov 17, 2021
    100 KB Nov 17, 2021
file type icon Images - Greyscale
updated: Nov 17, 2021
    67 KB Nov 17, 2021

Support/FAQs
