Vi6 (停产)

操作最舒适简便,音效最佳

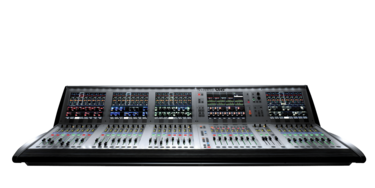

Vi6
较大的图像

声艺Vi6™被誉为操作最舒适简便且音效最佳的大型数字控制台之一。姊妹公司STUDER提供的经验证数字信号处理引擎和算法确保了高品质的音频。

声艺Vi6™已广泛应用于全球各地骑行者和表演场所,被誉为操作最舒适简便且音效最佳的大型数字控制台之一。姊妹公司STUDER提供的经验证数字信号处理引擎和算法确保了高品质的音频;STUDER的Vista™和On-Air 3000™等数字广播控制台深受世界各地各国家、州和独立演播室以及实况转播车喜爱。

采用人体工学设计的Vi6能够提供极好的用户经验,主要得益于已获得专利的Vistonics™ II“玻璃旋钮”通道带界面。作为STUDER的另一项创新,Vistonics™基于“所见即所控”操作原理提供令人难以置信的触觉感受;此种操作原理融合了模拟操作台控制的访问速度和直观性以及基于图标的图形功能以及只能来自数字控制台的完全可调用设置。32路输入推子外加12推子主要部分大大降低了换层频率,有助于提高运行速度;同时,来自Lexicon和BSS的世界一流效果和处理能力起到了画龙点睛的作用。

Vi6与STUDERD 21m模块化输入输出系统集成后几乎可连接各种类型的数字音频格式,所配备的模块化远程舞台盒可选用光学或铜连接方式与主控制台连接。

特点

音频通道

• 最大数量的同步混音通道 96路单声道输入至35路输出。单声道输入对可连接形成立体声通道。

• 插入点 可配置24个插入发送/返回对(使用可用的输入/输出)并分配至96路输入或35条输出通道的任意一条。

• 直接输出 所有96条输入通道都有直接输出,此外还有内部总线布线,前提是有足够的可用输入/输出(例如:光学MADI卡)。

• 总线 32路Grp/Aux/Matrix外加主LCR混音和LR独奏总线(最多可配置16路矩阵输出)。



连通性

• 本地机柜连接舞台盒:标准配置:配备安费诺RJF连接器的Cat5或Cat7缆线。选配:光纤接口卡(额外成本)。

• 本地机柜与舞台盒最大距离:使用经声艺批准的柔性卷筒装Cat5缆线时为100m,使用Cat7永久性安装电缆时为130m。

• 通用输入输出(GPIO)设备:本地机柜上共有16路通用输入输出触点闭合输入和输出,舞台盒上共有8路输入和输出。

• 乐器数字接口:控制界面后侧设有1路乐器数字接口输入和2路乐器数字接口输出。



离线编辑器 - Virtual Vi

声艺Vi6可配用离线编辑器(Virtual Vi)。参见下文的“下载”章节。



其他

静音组(x4)和VCA组(x16)控制分配。Vistonics行分配至总线发送的控制(通道参数未针对Vistonics进行选择时)。快照自动化控制。应答控制。监听输出电平、耳机电平及独奏修饰和混合电平控制。

Videos





























































































































































下载和文件

  Version Language Size Uploaded
Offline Editors
platform icon Virtual Vi
version 4.9.2, updated: 7月 2018
4.9.2     12.7 MB 7月 2018
platform icon Virtual Vi
version 4.8.2, updated: 9月 2017
4.8.2     11.9 MB 9月 2017
Software Updaters
platform icon Vi 1-6 Software Update
version 4.9.2, updated: 10月 2020
4.9.2     8.4 MB 10月 2020
Release Notes for Vi1-6 V4.9.2     2.9 KB 10月 2020
platform icon Vi Series Software Update V4.8.2
updated: 7月 2018
    7.3 MB 7月 2018
platform icon Vi Series V3.3.1.30_Update_Updater.zip
updated: 10月 2020
    398.3 KB 10月 2020
platform icon Release Notes for Vi1-6 v4.9.0.289
version 4.9.0, updated: 7月 2018
4.9.0     6.0 KB 7月 2018
platform icon Checking DSP Card Positions in Vi Local Racks
updated: 7月 2018
    395.3 KB 7月 2018
platform icon Update Instructions for Vi1 and Vi2/4/6 Consoles V4.9
updated: 7月 2018
    496.7 KB 7月 2018
platform icon Update Instructions for Vi 1-6 consoles (French version) Issue 3
updated: 7月 2018
    964.5 KB 7月 2018
platform icon Release Notes for Vi1-6 V4.8.2.234 Issue 3
updated: 9月 2017
    6.9 KB 9月 2017
platform icon Vi Series Software V4.8 Brochure
updated: 9月 2017
    486.1 KB 9月 2017
  Version Language Size Uploaded
Extras
file type icon Soundcraft Vi4 and Vi6 Control Surface Dims DXFs
en updated: 5月 2023
  en  973.3 KB 5月 2023
file type icon Soundcraft Vi6 Dimensions
en updated: 5月 2023
  en  283.8 KB 5月 2023
file type icon Vi Local Rack and Stagebox DXFs
en updated: 5月 2023
  en  6.1 MB 5月 2023
file type icon Audio Media Mar06 Review
en updated: 5月 2023
  en  661.7 KB 5月 2023
file type icon AKG Hub4000Q Setup FAQ for VM2
en updated: 5月 2023
  en  2.1 MB 5月 2023
file type icon Local Rack and Stage Box Dimensions (New)
en updated: 5月 2023
  en  3.2 MB 5月 2023
file type icon Local Rack and Stage Box Dimensions (Old)
en updated: 5月 2023
  en  431.1 KB 5月 2023
brochures
file type icon Double-sided Flyer with Soundcraft Vi Series and Processor card
en updated: 5月 2023
  en  2.6 MB 5月 2023
file type icon Soundcraft Vi Series Brochure 0511
en updated: 5月 2023
  en  8.5 MB 5月 2023
file type icon Soundcraft Vi4/Vi6 Brochure, Chinese
zh updated: 5月 2023
  zh  36.0 MB 5月 2023
file type icon Vi Series 96 2 Mix Flyer
en updated: 5月 2023
  en  1.9 MB 5月 2023
file type icon Vi Series Software V4.0 Flyer
en updated: 5月 2023
  en  2.2 MB 5月 2023
file type icon VM(2) AKG Mic Monitoring Flyer
en updated: 5月 2023
  en  507.6 KB 5月 2023
file type icon The Vi Series in Broadcast
en updated: 5月 2023
  en  2.1 MB 5月 2023
file type icon Vi Series - Software Version 2.0 Flyer
en updated: 5月 2023
  en  327.7 KB 5月 2023
file type icon Vi Series Brochure - Deutsch
de updated: 5月 2023
  de  947.2 KB 5月 2023
file type icon Vi Series Brochure - French
fr updated: 5月 2023
  fr  2.4 MB 5月 2023
file type icon Vi Series Brochure - Polish
updated: 5月 2023
    1.3 MB 5月 2023
file type icon Vi Series Brochure - Russian
updated: 5月 2023
    2.4 MB 5月 2023
owners_manuals
file type icon Vi4-Vi6 User Guide (All Chapters) Web Version
en updated: 5月 2023
  en  21.0 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch00 - TOC
en updated: 5月 2023
  en  597.2 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch01 - Introduction
en updated: 5月 2023
  en  1.5 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch02 - System Components
en updated: 5月 2023
  en  4.4 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch03 - Operation Overview
en updated: 5月 2023
  en  1.2 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch04 - Inputs
en updated: 5月 2023
  en  24.5 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch05 - Outputs
en updated: 5月 2023
  en  2.3 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch06 - Matrix
en updated: 5月 2023
  en  340.6 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch07 - Encoders
en updated: 5月 2023
  en  4.3 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch08 - Layers
en updated: 5月 2023
  en  3.6 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch09 - VCA
en updated: 5月 2023
  en  350.2 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch10 - Patching
en updated: 5月 2023
  en  12.5 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch11 - Monitoring
en updated: 5月 2023
  en  3.2 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch12 - Talkback and Oscillator
en updated: 5月 2023
  en  7.7 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch13 - Metering
en updated: 5月 2023
  en  3.3 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch14 - Main Menu
en updated: 5月 2023
  en  3.0 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch15 - Snapshot
en updated: 5月 2023
  en  29.5 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch16 - GPIO
en updated: 5月 2023
  en  639.4 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch17 - FaderGlow
en updated: 5月 2023
  en  161.6 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch18 - Copy and Paste
en updated: 5月 2023
  en  2.1 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch19 - Features and Specifications
en updated: 5月 2023
  en  98.4 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch20 - Vi Processor Card
en updated: 5月 2023
  en  3.2 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch21 - MIDI
en updated: 5月 2023
  en  5.6 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch22 - 96 channel version
en updated: 5月 2023
  en  685.3 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch23 - IO Cards
en updated: 5月 2023
  en  4.7 MB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch24 - Block Diagrams
en updated: 5月 2023
  en  695.4 KB 5月 2023
file type icon Vi4-Vi6 User Guide - Ch25 - VM2
en updated: 5月 2023
  en  5.5 MB 5月 2023
file type icon Plugins and ProTools for Vi Series
en updated: 5月 2023
  en  2.1 MB 5月 2023
file type icon Soundcraft Realtime Rack User Guide
en updated: 5月 2023
  en  9.9 MB 5月 2023
quickstart_guides
file type icon Vi V4.7 Software Quickstart Guide
en updated: 5月 2023
  en  1.2 MB 5月 2023
file type icon Vi V2.0 Software Quickstart Guide
en updated: 5月 2023
  en  14.9 MB 5月 2023
file type icon Vi V3.0 Software Quickstart Guide
en updated: 5月 2023
  en  2.5 MB 5月 2023
file type icon Vi V4.0 Software Quickstart Guide
en updated: 5月 2023
  en  1.7 MB 5月 2023
file type icon Vi V4.5 Software QuickStart Guide
en updated: 5月 2023
  en  3.7 MB 5月 2023
file type icon Vi V4.8 Software QuickStart Guide
en updated: 5月 2023
  en  2.5 MB 5月 2023

性能

频率响应 - 舞台接口箱麦克风输入到线路输出 +0/-1dB, 20Hz-20kHz
AES/EBU 输入到 AES/EBU 输出 +0/-0.2dB, 20Hz-20kHz
THD + 噪音 22Hz-22kHz
舞台接口箱麦克风输入(最小增益)到本地线路输出 <0.003% @ 1kHz
舞台接口箱麦克风输入(最大增益)到本地线路输出 <0.020% @ 1kHz
本地线路输入到线路输出 <0.003% @ 1kHz
麦克风输入 E.I.N <-126dBu (150Ω source); 22Hz-22kHz bandwidth, unweighted
残留噪声 -95dBu - Stagebox line output; no inputs routed, Mix fader @0dB
共模 80dB @ 1kHz
采样频率 48kHz
延迟:舞台接口箱麦克风输入到本地线路输出 < 2ms @48kHz
AES/EBU 输入采样率 32–108kHz (with SRC enabled)
DSP 分辨率 40-bit floating point
内部时钟精度 < +/- 50ppm
内部时钟抖动 < +/- 5ns
外部同步 BNC Wordclock, AES/EBU sync in, Video sync in
输入和输出电平 - 麦克风输入 +28dBu max
输入和输出电平 - 线路输入 +22dBu max
输入和输出电平 - 线路输出 +22dBu max
输入和输出电平 - 标称工作电平 +4dBu (-18dBFS)
输入和输出阻抗 - 麦克风输入 2k7Ω
输入和输出阻抗 - 所有其他模拟输入 >10kΩ
输入和输出阻抗 - 线路输出 <75Ω
输入和输出阻抗 - AES/EBU 输出 110Ω
振荡器 20Hz to 20kHz/Pink/White Noise, variable level
舞台接口箱高通滤波器 80Hz fixed, 12dB per octave
通道高通滤波器 20Hz-600Hz, 18dB per octave
通道低通滤波器 1kHz-20kHz, 18dB per octave
EQ(输入和总线输出) - 高频 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ(输入和总线输出) - 高中频 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ(输入和总线输出) - 低中频 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ(输入和总线输出) - 低频 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
计量 Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
电源电压工作范围 90-264V, 47-63Hz, auto-ranging
电源功耗 - 控制界面 155W (165W with redundant option)
电源功耗 - 本地机架 140W (150W with redundant option)
电源功耗 - 舞台接口箱 140W (150W with redundant option)
内部大容量存储器 16GB SSD Hard Drive
温度/湿度范围 - 工作温度范围 0°C – 45°C (32°F – 113°F)
温度/湿度范围 - 相对湿度 0% – 90%, non-condensing Ta=40°C (104°F)
温度/湿度范围 - 存储温度范围 -20°C – 60°C (-4°F – 140°F)
高(不含航空箱) Control Surface - 326mm (12.8"); Local Rack - 445mm (17.5"); Stagebox - 356mm (14")
宽(不含航空箱) Control Surface - 1742mm (68.6"); Local Rack - 482mm (19"); Stagebox - 482mm (19")
厚(不含航空箱) Control Surface - 725mm (28.5"); Local Rack - 380mm* (15"); Stagebox - 380mm** (15") *Minimum space requirement for Local Rack is 570mm (22.4") ** Minimum space requirement for Stagebox is 490mm (19.3")
重(不含航空箱) Control Surface - 63kg (139lb); Local Rack - 25kg (55lb); Stagebox - 16kg (35lb)
高(含出厂航空箱) Control Surface - 938mm (36.9"); Local Rack - 780mm (30.7"); Stagebox - 780mm (30.7")
宽(含出厂航空箱) Control Surface - 1823mm (71.8"); Local Rack - 754mm (29.6"); Stagebox - 754mm (29.6")
厚(含出厂航空箱) Control Surface - 467mm (18.4"); Local Rack - 568mm (22.3"); Stagebox - 568mm (22.3")
重(含出厂航空箱) Control Surface - 167kg (367lb); Local Rack - 50kg (110lb); Stagebox - 50kg (110lb)
