Signature 22 MTK
停产

混音,录制和制作您的 Signature 声音

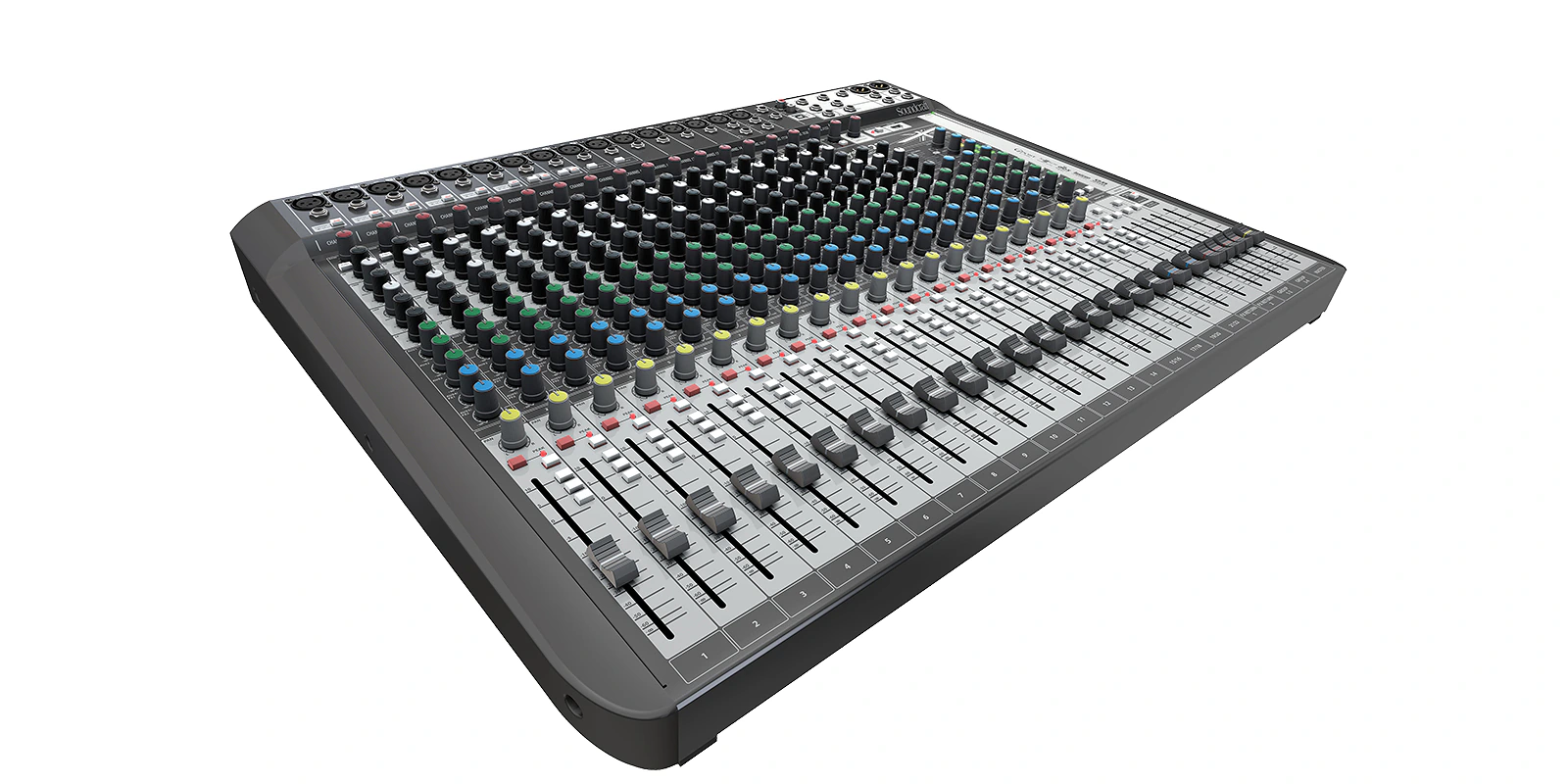

Signature 22 MTK
较大的图像

Soundcraft Signature 22MTK 调音台采用直接取自 Soundcraft 顶级专业调音台的标志性 Ghost 麦克风前置功放,以提供卓越的音质,高动态余量,宽动态范围,一流的解析力和清晰度,以及极佳的信噪比。 本系列使用 Soundcraft 的 Sapphyre Assymetric EQ,将每个声乐和乐器元素与每个 Soundcraft 调音台中固有的无与伦比的音乐相结合,再加上已经历过全球数千个现场演出洗礼的 GB 系列音频传输技术。

另外,其包含各种内置的 Lexicon 录音棚级混响,合唱,调制和其他效果以及输入通道上的 dbx 限幅器。 此外,调音台的多轨 USB 音频接口允许任何 VST/AU/AAX/TDM/RTAS 插件插入任何输入通道,使录音棚插件无缝融入到现场演出中。 另可免费下载 Lexicon MPX-i 本地插件和 Ableton Live 9 Lite。

本调音台旨在提供最纯粹的录音。 两个版本均配有超低延迟的 USB 接口,无缝地捕获每路通道,然后将其混合或转移到 DAW 以便进一步混音和制作。 与此同时,调音台提供 XLR 和可切换的 Hi-Z 输入,方便直接连接吉他,贝斯和其他乐器。

此外,Soundcraft Signature 22MTK 调音台配有流畅优质的推子,采用 GB® 系列音频传输,且每路辅助上都可灵活进行前/后切换,以及具有强大传输和切换选项以及专用输出的子组。

Soundcraft Signature 12MTK 和 Soundcraft Signature 22MTK 均采用巡演级的坚固金属结构和顶级元件构建, 且内置了通用电源。



  Signature 10 Signature 12 / 12 MTK Signature 16 Signature 22 / 22 MTK
通道数 10 12 16 22
Soundcraft® Ghost 前置话放 6 8 12 16
Soundcraft® Sapphyre EQ 3 频段(1 频段为扫频中频) 3 频段(1 频段为扫频中频) 4 频段(2 频段为扫频中频) 4 频段(2 频段为扫频中频)
dbx® 输入限幅 2 2 4 8
Lexicon® 效果器 单引擎 单引擎 单引擎 双引擎
USB 接口 2-in/2-out 2-in/2-out (14-in/12-out on 12 MTK) 2-in/2-out 2-in/2-out (24-in/22-out on 22 MTK)
辅助输出 3 3 4 5
子编组 0 2 mono/1 stereo 4 mono/2 stereo 4 mono/2 stereo
推子长度 60mm 60mm 100mm 100mm

更多详情

特点

• 高性能 22 路输入小格式模拟调音台,具有板载效果和多轨 USB 录音和播放

• 24 路输入/22 路输出超低延迟 USB 播放和录音接口*

• 标志性的 Soundcraft® Ghost 麦克风前置功放,具有超低噪声性能

• 知名的 Soundcraft® Sapphyre British EQ,每通道支持扫频中频

• Lexicon® 效果引擎,包括屡获殊荣的混响,延时,合唱和调制

• 输入通道均提供 dbx® 限幅器(高比率压缩器)

• 适于吉他,贝斯和其他乐器的可切换 Hi-Z 输入

• 所有麦克风通道均提供高通滤波器(低阻)和 48V 幻像电源

• 全面的 Soundcraft® GB 系列 音频传输,带有辅助(灵活前/后切换)以及具有切换选项和专用输出的子组

• 流畅优质的 100mm 推子

• 坚固的金属结构,具有巡演级的质量和可靠性

• 内部通用电源



* USB 接口兼容性:

PC: 支持 Windows 7,Windows 8 和 Windows 10。

Mac: 支持 Mac OS 10.7.x Lion 到 10.11.x El Capitan

下载和文件

其他软件
  大小 上传日期
1.3 MB 3月 2019
额外
  语言 大小 上传日期
file type icon Signature 22MTK Outline Dimensions (DXF file)
en 更新: 4月 2026
en  59.1 MB 4月 2026
file type icon Signature 22MTK Outline Dimensions (PDF file)
en 更新: 4月 2026
en  698.2 KB 4月 2026
brochures
  语言 大小 上传日期
file type icon Soundcraft Signature Brochure
en 更新: 4月 2026
en  788.3 KB 4月 2026
file type icon Soundcraft Signature MTK Brochure
en 更新: 4月 2026
en  1.2 MB 4月 2026
owners_manuals
  语言 大小 上传日期
file type icon Signature 16/22/22MTK User Guide
en 更新: 4月 2026
en  10.8 MB 4月 2026
file type icon Signature MTK Recording Guide
en 更新: 4月 2026
en  7.8 MB 4月 2026
file type icon Signature 16/22/22MTK User Guide (German)
de 更新: 4月 2026
de  3.3 MB 4月 2026

性能

109mm (4.3")
490mm (19.3")
长度 660mm (26.0")
重量 11.36kg (25.1lb)
