Vi3000

Digital Live Sound Console

Vi3000
Larger Images

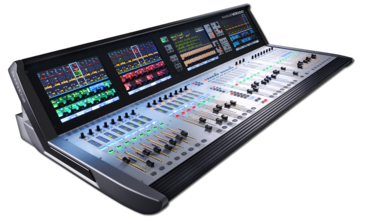

The Soundcraft Vi3000 features an all-new appearance with a more efficiently designed control surface, 36 faders, 24 mono/stereo busses and a sweeping black screen panel with four Vistonics II™ touchscreen interfaces with sleek, updated 3D graphics. Because the Vi3000 has four touchscreens, it's the only console in its class that can be used by two engineers at the same time.

The Soundcraft Vi3000 offers extensive rear panel connectivity. In addition to a full complement of analog and digital inputs and outputs, the console provides MIDI, USB, Ethernet, DVI out, Dante/MADI record feed outputs, redundant power supply and other connections. The Vi3000 has two expansion bays that can be fitted with MADI Stagebox cards, to connect multiple Soundcraft Stagebox input expander modules. The Vi3000 can also accommodate the new Soundcraft Realtime Rack, a hardware/software unit designed in collaboration with plug-in manufacturer Universal Audio that provides access to 74 industry-standard UAD plug-ins. The Vi3000 is the first Soundcraft console to incorporate a Dante interface as standard, for seamless digital audio networking with Dante-enabled devices.

Along with its greatly expanded functionality, the Vi3000 retains all the features that have made the Soundcraft Vi Series the consoles of choice for live sound engineers worldwide, such as FaderGlow™ illuminated faders that display different colors according to function, the ability to store and recall snapshots and cues, compatibility with Soundcraft's ViSi app that allows remote control from an iPad, built-in Lexicon reverb/delays, dbx compression, effects and more.

Features

Virtual Vi offline set up - Set up your shows offline and load them into the Vi3000 via USB

VM2 radio mic status monitoring - Monitor the status of SHURE ULX-D and QLX-D and HiQnet-compatible AKG radio mics directly from the console surface with realtime visual displays of battery life, RF status, mic muting and internal clipping.

BSS DPR901ii Dynamic EQ - this acclaimed industry-standard DEQ is built in as standard with 8 instances available for inserting on any input or output channel. The DEQ can be used at the same time as the existing channel EQ and Dynamics sections.

Copy/Paste channel bus and FX settings - Dedicated Copy and Paste buttons on the surface allow the settings of any channel, bus or FX section to be copied and pasted, dramatically cutting down the set up time.

Copy/Paste processing elements - Operators can drill down to copy and paste even single processing elements, and the last paste operation can always be quickly reversed with an UNDO function.

Settings Library - Along with a useful library of EQ and Dynamics settings, operators can store their own settings in the console or to a USB memory stick, making initial set up and transition between shows even easier.

Sophisticated Cue List Management - Allows changes to be applied to multiple cues and recall scope to be set per snapshot.

Advanced events integration - Cues can trigger or be triggered by MIDI or GPIO events, including MIDI timecode. Harman's HiQnet Venue recall function is tightly integrated within the Cue List.

Automated microphone mixing - STUDER vMIX processing is built-in, with ability to seamlessly process up to two separate groups of 16 inputs, with clear and intuitive metering showing gain reduction.

Snapshot crossfades - Snapshot recalls can use crossfades to transition smoothly from one setting to the next.

ViSi Remote iPad® app - Control major functions and optimise your mix from anywhere in the venue. Adjust monitor levels from the stage. Includes control of EQ Dynamics and metering overview.

All busses to stereo - All busses can be turned to stereo without tying up two busses, providing a massive 24 stereo mix capability – perfect for mixing large monitor applications.

4 Aux send points - With a total of 4 aux send points, monitor mix engineers have the flexibility to tailor mixes more closely to performers' requirements. Sends can be pre-EQ, precompressor, pre-fade or post-fade on a per channel/per bus basis.

Aux VCA mode - VCA master faders can control the aux sends of their member channels on a per mix basis, with a FaderGlow illuminating in white to indicate the VCA's operation on the current mix. Monitor engineers can retain control of important global elements such as ambient mics while also having a monitor mix selected and adjusting groups of sources within the current mix using the Aux-VCAs. Blue illumination of FaderGlow indicates that the VCA is controlling the global channel level to all mixes.

Auto-increase of ambient mic levels in monitor mixes between songs - Performers using in-ear monitors want to hear the audience between songs. No problem. Vi3000 has the facility to externally control the Gate or Ducking processing from a bus in the console, so all you have to do is insert a ducker on an ambient mic with an external source of the LR bus or a spare bus, and the audience level increases automatically when the performers stop playing.

Videos

















































































Downloads

  Version Language Size Uploaded
Offline Editors
platform icon Soundcraft Virtual Vi
version 6.4.5.340, updated: Nov 2023
6.4.5.340     22.2 MB Nov 2023
platform icon Soundcraft Virtual Vi [PREVIOUS VERSION]
version 6.4.4.334, updated: Feb 2022
6.4.4.334     21.8 MB Feb 2022
platform icon [PREVIOUS] Vi3000 Offline Editor
version 5.0.0.235, updated: Jul 2021
5.0.0.235     15.8 MB Jul 2021
Software Updaters
platform icon Update_Console.7z
version 6.4.5.340, updated: Jun 2022
6.4.5.340     17.7 MB Jun 2022
Release Notes V6.4.5.340     4.76 KB Jun 2022
platform icon Update_Console.7z [PREVIOUS VERSION]
version 6.4.4.334, updated: Dec 2021
6.4.4.334     17.6 MB Dec 2021
Release Notes V6.4.4.334     5 KB Dec 2021
platform icon Vix000_Vix00_Vi1-6_Update_updater.zip
version 5.0.0.38, updated: Jan 2022
5.0.0.38     410 KB Jan 2022
Update Instructions for Vix00+Vix000 v2.0     125 KB Jan 2022
platform icon [PREVIOUS] Vi3000 Software Update
version 5.0.1.253, updated: Jul 2021
5.0.1.253     10.6 MB Jul 2021
More Downloads
platform icon Vi3000 Downgrader from V6.x to V5.x
updated: Jul 2021
    398 KB Jul 2021
  Version Language Size Uploaded
Brochures
file type icon Soundcraft Vi3000 Brochure
en updated: Mar 2024
  en  5.85 MB Mar 2024
Owners Manuals
file type icon Vi3000 User Guide - Introduction
en updated: Mar 2024
  en  4.43 MB Mar 2024
file type icon Vi3000 User Guide Complete v1.4
en updated: Feb 2024
  en  33.2 MB Feb 2024
file type icon Vi V6.4.4 Software User Guide v1.0
en updated: Feb 2024
  en  1.02 MB Feb 2024
file type icon Vi V6.4.3 Software User Guide v1.1
en updated: Mar 2024
  en  965 KB Mar 2024
file type icon V6.4 Software User Guide Supplement
en updated: Mar 2024
  en  2.03 MB Mar 2024
file type icon V6.3 Software Features User Guide
en updated: Mar 2024
  en  1.79 MB Mar 2024
file type icon Vi V6.2 Mirroring User Guide v1.2
en updated: Mar 2024
  en  2.59 MB Mar 2024
file type icon Vi3000 User Guide Supplement - V6.1 Software Features
en updated: Mar 2024
  en  3.18 MB Mar 2024
Extras
file type icon Vi Local Rack and Stagebox DXFs
en updated: Mar 2024
  en  6.12 MB Mar 2024
file type icon Vi3000 Dimensions
en updated: Mar 2024
  en  940 KB Mar 2024
file type icon Vi3000 Dimensions (DXF)
en updated: Mar 2024
  en  22 MB Mar 2024

Specifications

Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
THD 22Hz-22kHz
Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Local Line In to Line Out <0.003% @ 1kHz
Mic Input E.I.N <-126dBu (150Ω source)
Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR 80dB @ 1kHz
Sampling Frequency 48kHz
Latency: Stagebox Mic Input to Local Line output < 2ms @48kHz
AES/EBU Input Sample Rate 32-108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy < +/- 50ppm
Internal Clock Jitter < +/- 2ns
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +28dBu max
Input & Output Levels - Line Inputs +22dBu max
Input & Output Levels - Line Outputs +22dBu max
Input & Output Levels - Nominal Operating Level +4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 2k7Ω
Input & Output Impedances - All other analogue Inputs >10kΩ
Input & Output Impedances - Line Outputs <75Ω
Input & Output Impedances - AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Oscillator - Stagebox HP Filter 80Hz fixed, 12dB per octave
Oscillator - Channel HP Filter 20Hz-600Hz, 18dB per octave
Oscillator - Channel LP Filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, auto-ranging
Mains Power Consumption 300W
Temperature/Humidity Range - Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Temperature/Humidity Range - Relative Humidity 0% - 90%, non-condensing Ta=40°C (104°F)
Temperature/Humidity Range - Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Height (Console Only) 351mm (13.8")
Width (Console Only) 1446mm (56.9")
Depth (Console Only) 803mm (31.6")
Weight (Console Only) 54kg (119lb)
Height (with standard shipping carton) 595mm (23.5")
Width (with standard shipping carton) 1580mm(62.2")
Depth (with standard shipping carton) 950mm(37.4")
Weight (with standard shipping carton) 96kg (212lb)
Height (with factory flightcase) 1117mm(44.0")
Width (with factory flightcase) 1530mm(60.3")
Depth (with factory flightcase) 530mm(20.1")
Weight (with factory flightcase) 141kg(311lb)
