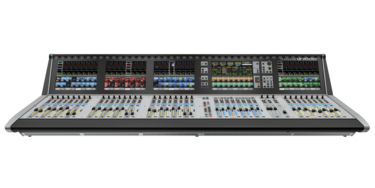

Vi7000

The control you love with the power you need

Vi7000
Larger Images

The Vi7000 digital mixing consoles delivers the best Vi sound ever, bringing optional 96kHz processing, upgraded channel counts and even more reliable hardware to live sound's most popular mix interface.

Partnering a compact control surface with new Local Rack and Active Breakout box hardware, Vi delivers simultaneous mixing of up to 128 inputs and 32 mono/stereo busses.

Pristine sound quality is assured by ultra-low noise mic amp designs and enhanced 96kHz* 40-bit floating point digital audio processing, while FX come courtesy of 8 independent Lexicon multi-FX units, BSS DPR901ii integration and a BSS graphic EQ on every bus output. Rapid configuration and powerful automation features, radio mic status monitoring and extensive ViSi Connect I/O expansion (EtherSound, CobraNet, Dante, MADI, etc.) complete the package.

* Additional DSP cards and reduced channel count required for 96kHz operation

KEY NEW FEATURES:

  • The latest Vistonics & FaderGlow interface
  • Up to 128 inputs and 32 mono/stereo busses
  • Enhanced audio processing with 96kHz sample rate option
  • Powerful new features including BSS DPR901ii Dynamic EQ
  • STUDER vMIX automatic microphone mixing built-in
  • New Local Rack hardware for 384 I/O channels
  • 128 channel record interface via MADI or Dante
  • Mix live with UA plug-ins (via Realtime Rack)
  • Huge connectivity options - Dante, Rocknet, Ethersound, Cobranet, MADI and more

Videos

Features

Live sound mixing - the way it should be

Our patented Vistonics was designed from a simple start point - create the most intuitive digital mix interface available. Rather than arranging controls around or adjacent to a flat TFT screen, a system that requires constant hand and eye co-ordination and mental mapping, Vistonics simplifies the process and puts the rotary encoders and switches right on the touch screen.

With graphics behind the controls that change depending on the function, the operator is left in no doubt as to what parameter is being adjusted.

With the display and relevant controls combined in one area, the operator is immediately presented with a simple, clear mix system that streamlines workflow and enhances the creative process.

Each Vistonics interface controls eight input channels and comprises a touch screen with 16 rotary encoders and 16 switches. A simple touch in the desired part of the on-screen channel strip is all it takes to access channel functions including routing, input gain, digital gain trim, delay, high and low pass filters, 4-band fully parametric EQ, compressor, limiter, gate, de-esser and pan, with immediate access to a sophisticated visual status display and straightforward controls.

In addition, a dedicated Vistonics II interface is provided for output processing control, and also functions as a complete meter overview display for all 128 inputs and 32 busses, as a snapshot cue list display, and as a display for diagnostics information.

Enhanced monitor mix features...

Vi consoles are equally designed for FOH and monitor mixing, with powerful features that makes it easy to mix large scale monitoring applications or deal with the compromises necessitated by mixing FOH and monitors from one surface.

All busses to stereo
All busses can be turned to stereo without tying up two busses, providing a massive 32 stereo mix capability – perfect for mixing large monitor applications.

4 Aux send points
With a total of 4 aux send pick-off points from the input channel for each send, monitor mix engineers have the flexibility to tailor mixes more closely to performers’ requirements. Sends can be pre-EQ, pre-compressor, pre-fade or post-fade on a per channel/per bus basis.

Aux VCA mode
VCA master faders can control the aux sends of their member channels on a per mix basis, with FaderGlow illuminating in white to indicate the VCA’s operation on the current mix. Monitor engineers can retain control of important global elements such as ambient mics while also having a monitor mix selected and adjusting groups of sources within the current mix using the Aux-VCAs. Blue illumination of FaderGlow indicates that the VCA is controlling the global channel level to all mixes.

Auto-increase of ambient mic levels in monitor mixes between songs
Performers using in-ear monitors want to hear the audience between songs? No problem. Vi consoles have the facility to externally control the Gate or Ducking processing from a bus in the console, so all you have to do is insert a ducker on an ambient mic with an external source of the LR bus or a spare bus, and the audience level increases automatically when the performers stop playing.

...and radio mic status monitoring

You know what it’s like. The radio mics check out fine on the RF Tech’s laptop, but that’s before the talent walks onto the stage. Reception black spots, drained batteries, accidental mutes – anything can happen once the show gets underway.

Vi makes the engineer’s life easier, letting you monitor the status of any compatible AKG or Shure radio mic directly from the Soundcraft® Vi Series console surface, courtesy of VM2 (Vistonics Microphone Monitoring). With realtime visual displays of battery life, RF status, mic muting and internal clipping, you’ll be able to see a problem long before you hear it, right there on the relevant channel strip – with expanded information instantly available just by touching the Vistonics screen.

And system configuration couldn’t be more straightforward – simply plug in the mics, associate them to the related console channels, and you’re done. You can even identify the relevant mic receiver in the rack by pressing the Locate button, causing the receiver front panel display to flash.

It all adds up to much more efficient workflow and one less thing for the engineer to worry about.

Automixing for Corporate Events

Vi5000 & 7000 now feature built-in STUDER vMIX processing, allowing seamless automixing of up to 4 separate groups of 16 microphone channels. vMIX allows the levels of multiple microphones to be managed to automatically to reduce the gain of any person who is not speaking, whilst keeping overall gain constant and reacting faster than a human hand to the sudden level changes in a dynamic panel discussion.

World-class effects and dynamics inside

Minimising the need for outboard processing gear, Vi5000 and Vi7000 put class-leading effects and dynamics from Lexicon and BSS directly within the console. Via the Vistonics interface and FaderGlow surface, Vi provides the perfect vehicle for effects control. No wonder many engineers are claiming that Vi is the only console they would use without any additional processing equipment.

BSS DPR901ii and Graphic EQ
The BSS DPR901ii was an industry-standard analogue dynamic equaliser used the world over for its capability as a powerful tool for awkward corrective tasks. A unique feature of the DPR901ii was the under/over threshold switch on each band, enabling the equaliser to react in either cut or boost mode to correct problems that occur only on loud or only on quiet signals. The Vi5000 and Vi7000 bring the world’s first accurately modelled version of the original analogue unit, to the digital domain. 16 instances of this classic processor are available via the console’s insert pool to use as required.

In addition to the BSS DPR901ii, there’s also a BSS third-octave Graphic Equaliser on every bus output. The Equaliser is modelled on the BSS960 analogue unit and includes a global Q adjustment allowing narrow bandwidth for stage monitor applications, or wider Q for system tuning on the main outputs.

Lexicon Effects
Vi puts powerful Lexicon effects at the hands of the operator via the Vi Series Processor Card.

The card empowers the console with 8 independent stereo Lexicon multi-effects units - each providing 14 reverbs, 7 delays and 8 pitch shifting effects, patchable to input channels, aux outputs and channel inserts.

Mix live with UA plug-ins

Answering the call for high-fidelity ‘off-the-record’ studio processing at live events, Soundcraft® Realtime Rack unlocks a world of creative possiblilities by placing Universal Audio’s acclaimed analogue audio processing emulations and award- winning UAD Plug-Ins seamlessly within your mix environment.

Realtime Rack software gives Vi console operators all the control they need to insert UAD Plug-Ins on individual channels, auxiliary channels, and master busses – just as easily as real hardware. Control of the plug- ins is via an intuitive and responsive external touchscreen interface. A comprehensive snapshot system allows total recall of all plug-ins and their settings, while tight network integration with the Vi Series ensures that all settings of the application are stored inside the console.

Two versions are available: The Realtime Rack Ultimate Live with 74 plug-ins, and the Realtime Rack Core Live with 14 plug-ins. Additional UAD Plug-Ins can be purchased any time from UA’s Online store.

The UAD Powered Plug-Ins platform offers the world’s most authentic analogue hardware emulations and award-winning audio plug-ins. Powered by Universal Audio’s DSP Accelerator hardware, UAD Powered Plug-Ins deliver rich, analogue sound quality that would be difficult or impossible to achieve with native plug-in host systems. From rare compressors and equalizers, to vintage reverb processors and tape machines, UAD Powered Plug-Ins inject three-dimensional ‘out-of-the- box’ analogue sound to your mixes.

The factory-designed flightcases for the Vi5000 and Vi7000 control surfaces include rack space and fittings to allow integration of up to three Realtime Racks, a Mac Mini computer for control and provision for storage and mounting of an external touchscreen monitor.

Click here for more information on the Soundcraft Realtime Rack

Videos

















































































Downloads

  Version Language Size Uploaded
Offline Editors
platform icon Soundcraft Virtual Vi
version 6.4.5.340, updated: Nov 2023
6.4.5.340     22.2 MB Nov 2023
platform icon Soundcraft Virtual Vi [PREVIOUS VERSION]
version 6.4.4.334, updated: Feb 2022
6.4.4.334     21.8 MB Feb 2022
Software Updaters
platform icon Update_Console.7z
version 6.4.5.340, updated: Jun 2022
6.4.5.340     17.7 MB Jun 2022
Release Notes V6.4.5.340     4.76 KB Jun 2022
platform icon Update_Console.7z [PREVIOUS VERSION]
version 6.4.4.334, updated: Dec 2021
6.4.4.334     17.6 MB Dec 2021
Release Notes V6.4.4.334     5 KB Dec 2021
platform icon Vix000_Vix00_Vi1-6_Update_updater.zip
version 5.0.0.38, updated: Jan 2022
5.0.0.38     410 KB Jan 2022
Update Instructions for Vix00+Vix000 v2.0     125 KB Jan 2022
  Version Language Size Uploaded
Brochures
file type icon Vi7000 Brochure-English
en updated: Mar 2024
  en  14.2 MB Mar 2024
Extras
file type icon TPi May 2015 - In the Spotlight: Soundcraft Vi Series
en updated: Mar 2024
  en  301 KB Mar 2024
file type icon Vi Local Rack and Stagebox DXFs
en updated: Mar 2024
  en  6.12 MB Mar 2024
file type icon Vi7000 Dimensions (DXF)
en updated: Mar 2024
  en  20.3 MB Mar 2024
Owners Manuals
file type icon Vi5000/7000 User Guide V1.8 (web version)
en updated: Mar 2024
  en  38.9 MB Mar 2024
file type icon Vi V6.4.4 Software User Guide v1.0
en updated: Feb 2024
  en  1.02 MB Feb 2024
file type icon Vi V6.4.3 Software User Guide v1.1
en updated: Mar 2024
  en  965 KB Mar 2024
file type icon V6.4 Software User Guide Supplement
en updated: Mar 2024
  en  2.03 MB Mar 2024
file type icon V6.3 Software Features User Guide
en updated: Mar 2024
  en  1.79 MB Mar 2024
file type icon Vi V6.2 Mirroring User Guide v1.2
updated: Mar 2024
    2.59 MB Mar 2024

Specifications

Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Local Line In to Line Out <0.003% @ 1kHz
Mic Input E.I.N <-126dBu (150Ω source)
Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input 80dB @ 1kHz
Sampling Frequency 48kHz or 96kHz
Latency: Stagebox Mic Input to Local Line output <2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy <+/-50ppm
Internal Clock Jitter <+/-5ns
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +28dBu max
Input & Output Levels - Line Inputs +22dBu max
Input & Output Levels - Line Outputs +22dBu max
Input & Output Levels - Nominal Operating Level +4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 10kΩ
Input & Output Impedances - All other analogue Inputs >10kΩ
Input & Output Impedances - Line Outputs <75Ω
Input & Output Impedances - AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter 80Hz fixed, 12dB per octave
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption 300W
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
