GB2

4 group busses configured and an integral 6 x 2 matrix

GB2
Larger Images

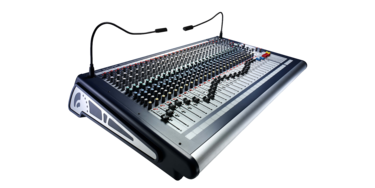

The GB2 is the latest addition to the Soundcraft GB Series, featuring 4 group busses configured as 2 stereo subgroups and an integral 6 x 2 matrix.

Intended for installed-sound and Audio-Visual applications that do not require the functionality provided by the GB4 or GB8, the GB2 is available in frame sizes of 16, 24 and 32 mono inputs, each with 2 stereo inputs as standard. Each input features the high-performance GB30 Mic Pre and GB30 Equaliser designs of the GB4 and GB8, along with 6 Aux buses.

Four Subgroups are provided as two stereo pairs, with a unique facility for adjusting the width of the stereo signal across the stereo mix. The channel pan settings are retained on the group outputs, while the degree of stereo separation to the mix bus is independently adjustable from full stereo through to mono.

The GB2 also features two stereo input channels, with separate mic and line inputs. In normal use, the mic inputs are routed to the local channel and the line inputs act as a stereo return to the mix bus. Selecting the LINE input to the local channel overrides the Mic inputs.

Downloads

  Version Language Size Uploaded
Owners Manuals
file type icon GB2 Spanish User Guide
es updated: Mar 2024
  es  6.16 MB Mar 2024
file type icon GB2 User Guide
en updated: Mar 2024
  en  2.44 MB Mar 2024
Brochures
file type icon GB Series brochure
en updated: Mar 2024
  en  3.28 MB Mar 2024
file type icon Soundcraft GB2 Brochure, Chinese
zh updated: Mar 2024
  zh  6.87 MB Mar 2024
Extras
file type icon Soundcraft GB2 Technical Datasheet
en updated: Mar 2024
  en  1.23 MB Mar 2024
